MECHANICAL PRESS
Press Machine
SSANGYONG 500T
In stock 1 unit
CATALOG
Video
Specifications

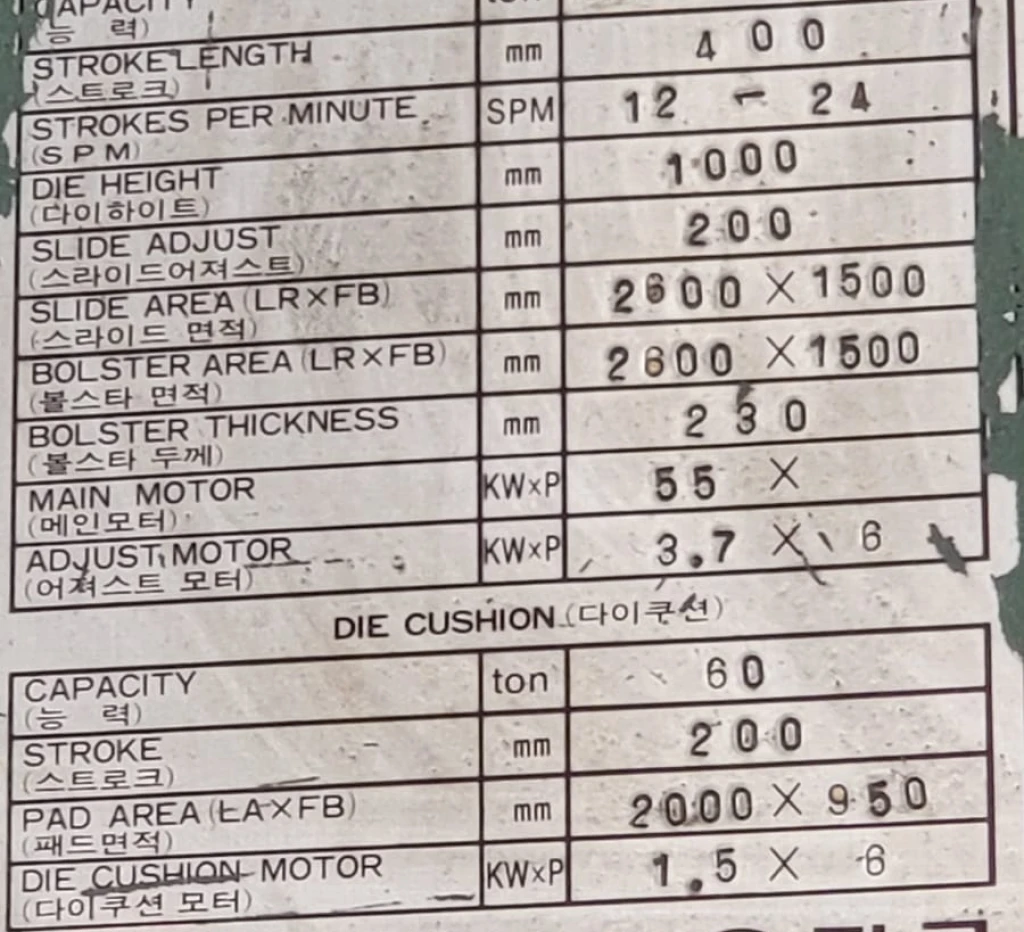

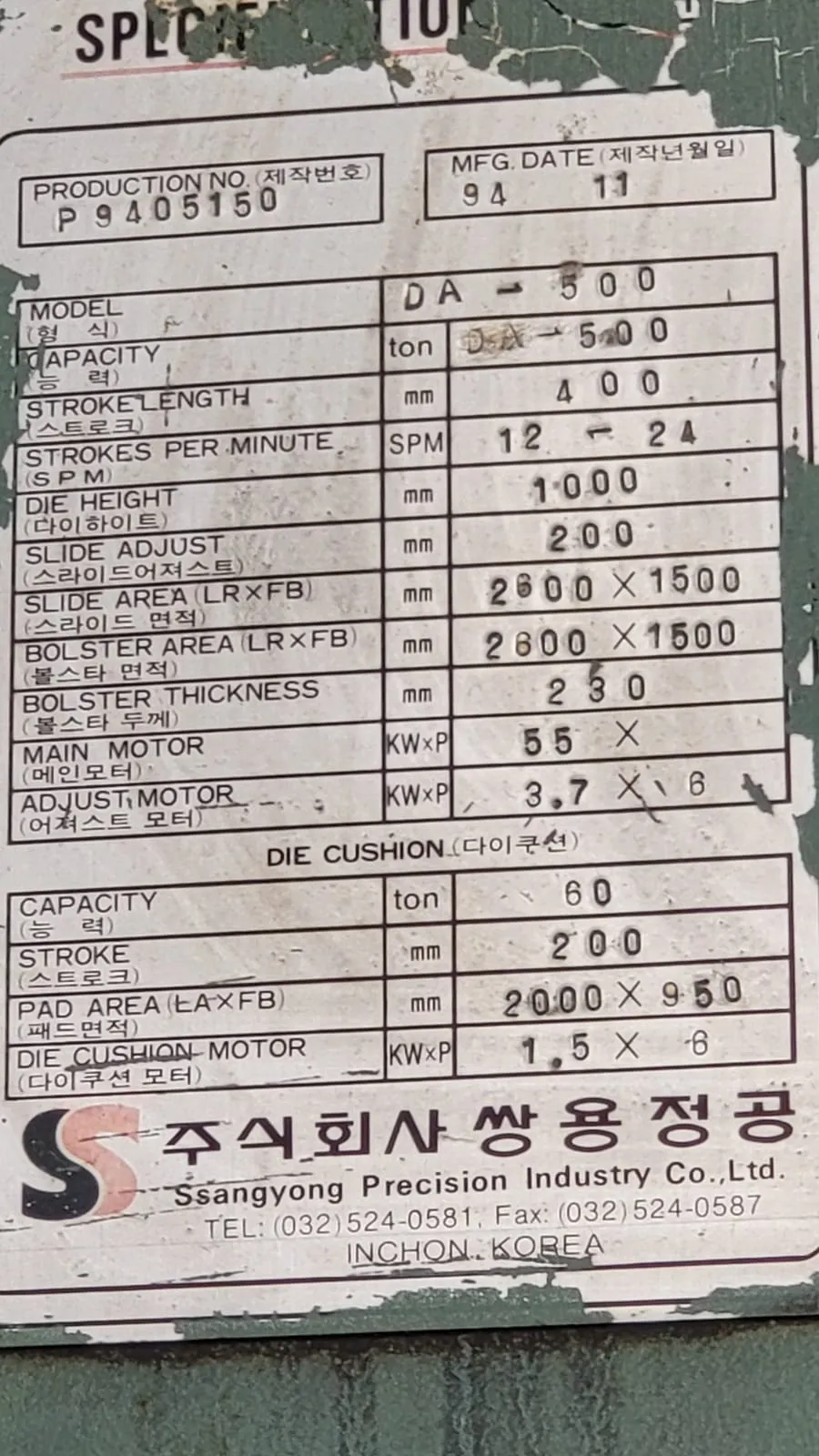

SPECIFICATION MACHINE
Brand
SSANGYONG
Model
DA 500
Capacity
(Ton)
500
Stroke Length
(mm)
400
Stroke per minutes
12 - 24
Die Heiht
(mm)
1000
Slide Adjustment
(mm)
200
Slide Area
(LRxFB)
(mm)
2600x1500
Bolster Area (LRxFB)
(mm)
2600x1500
Bolster thickness
(mm)
230
Main Motor
(KWxP)
55
Adjust Motor
(KWxP)
3.7x8
Die cushion capacity
(Ton)
60
Stroke
(mm)
200
Pad area (EAxFB)
2000x950
Die cushion motor
(KWxP)
1.5x6
