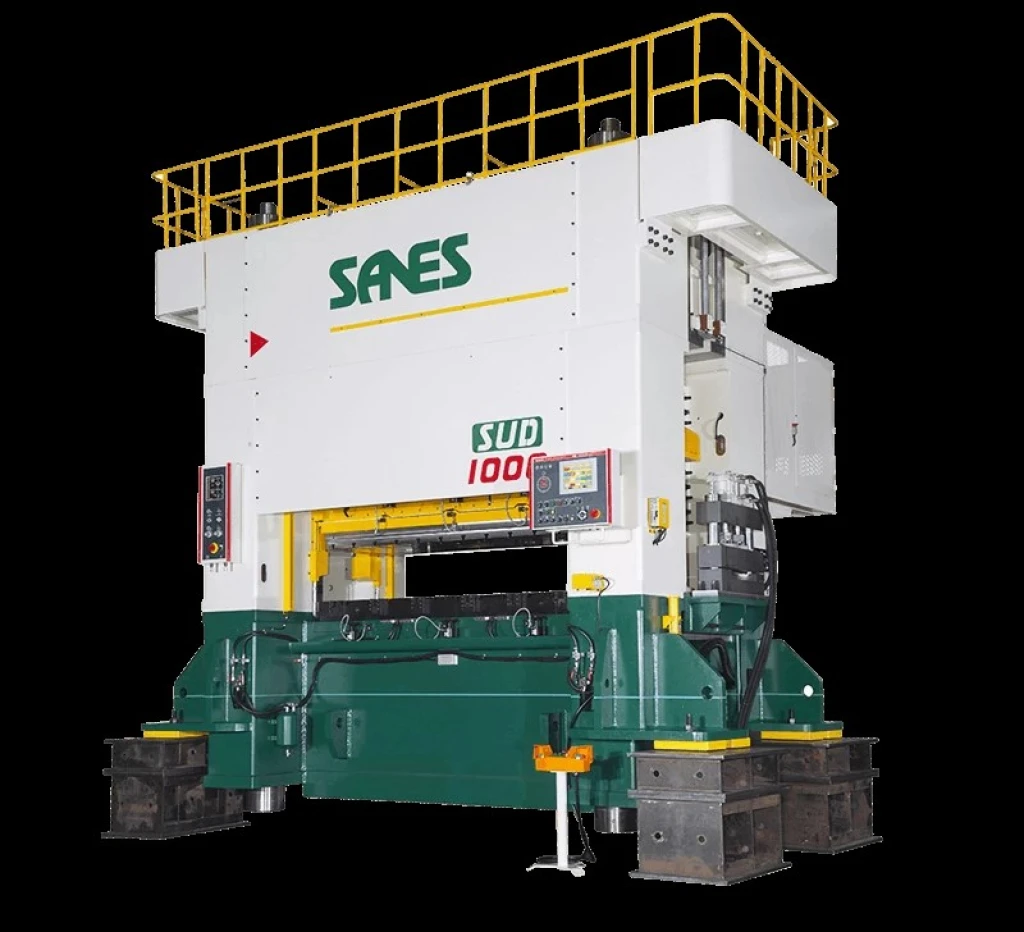

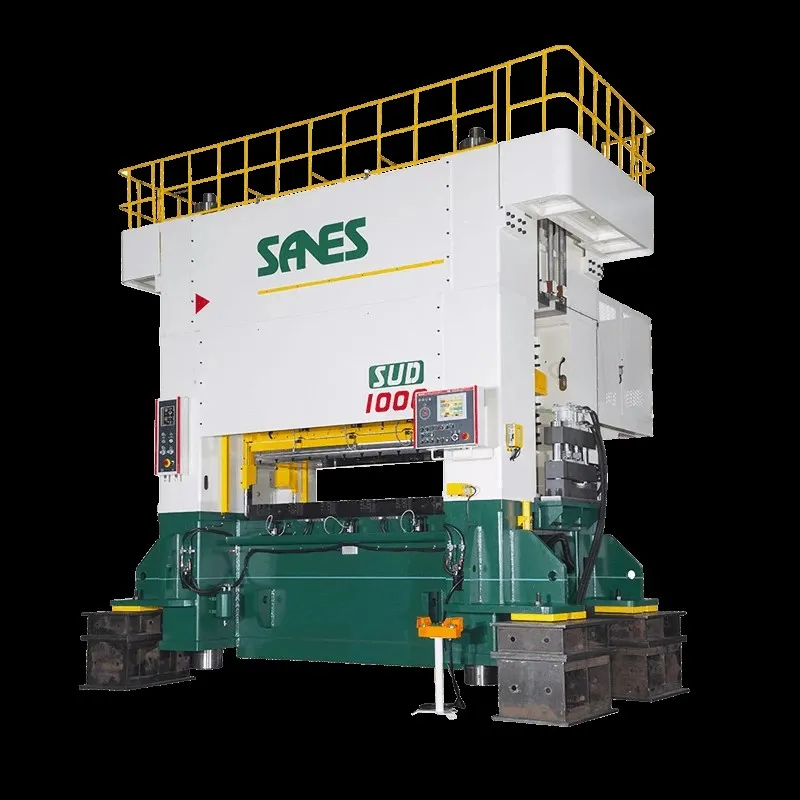

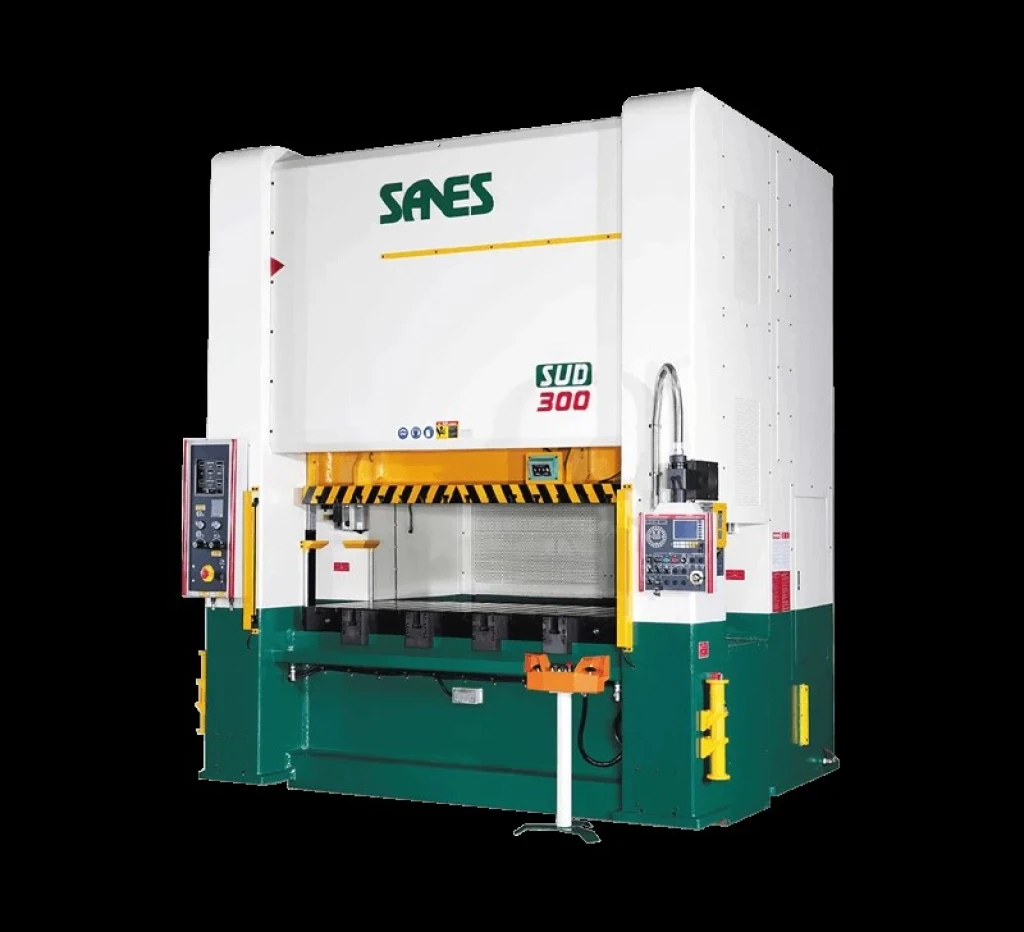

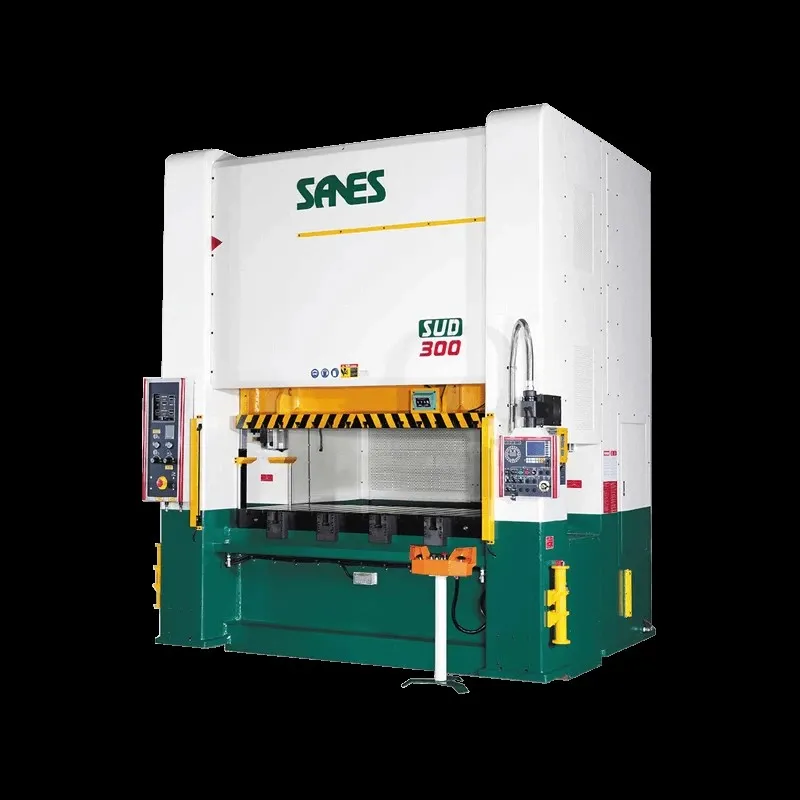

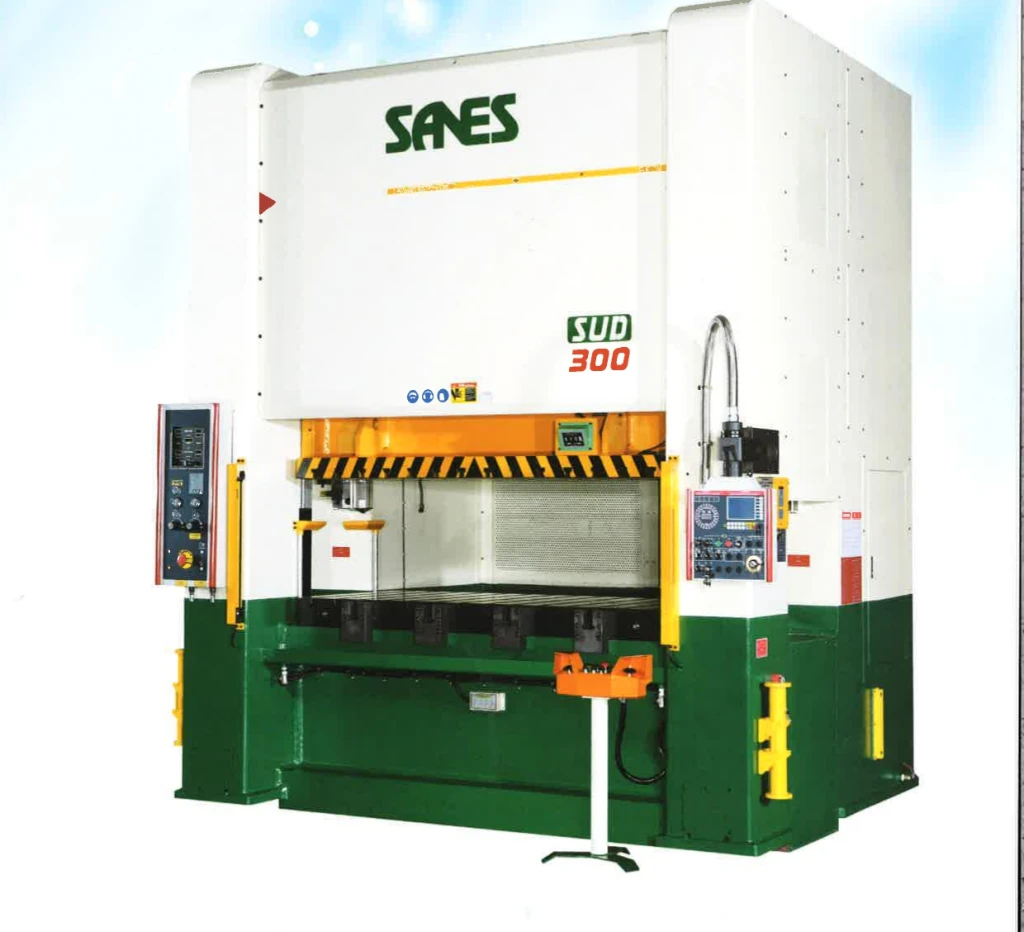

SUD Series | Two Point Press

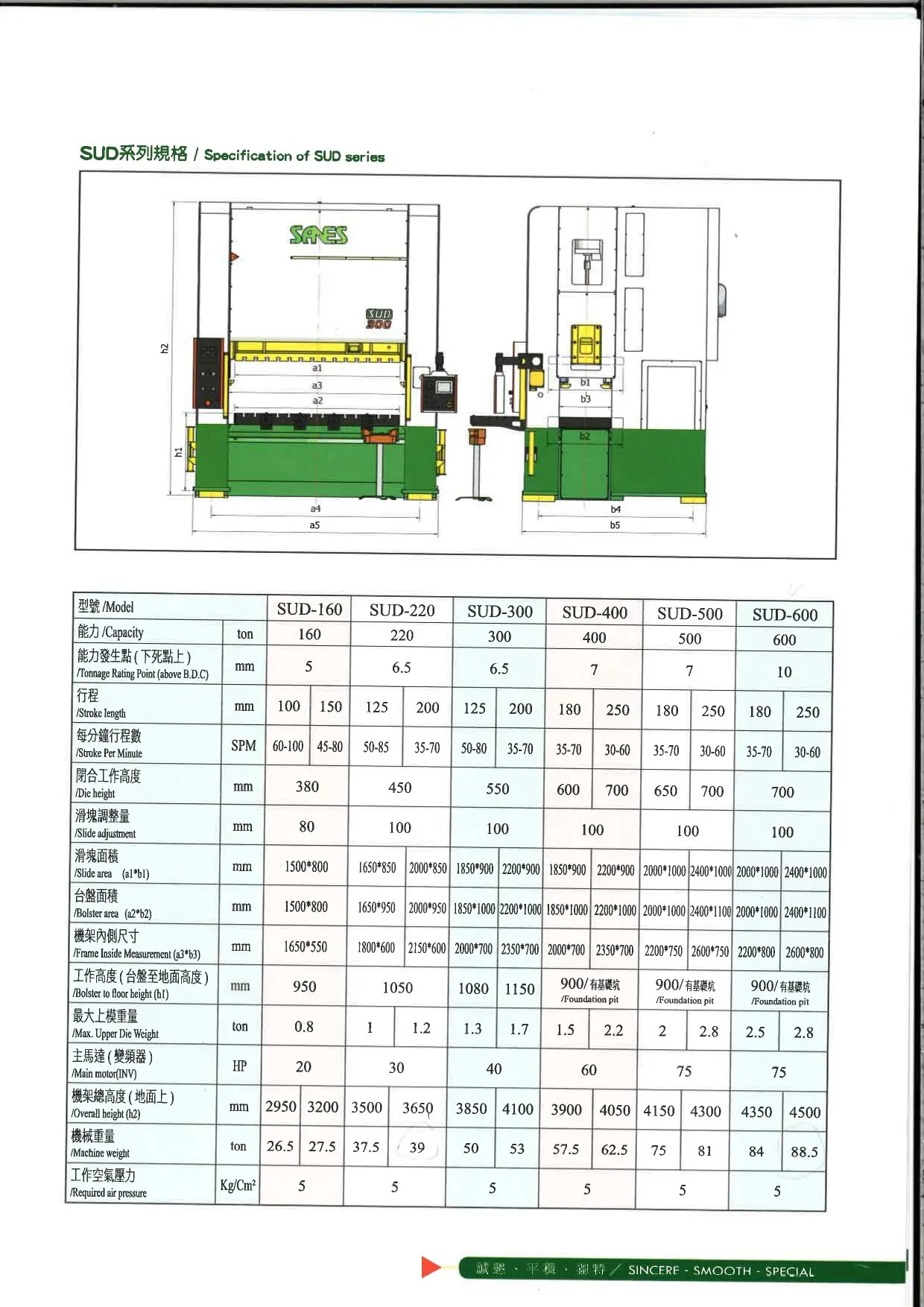

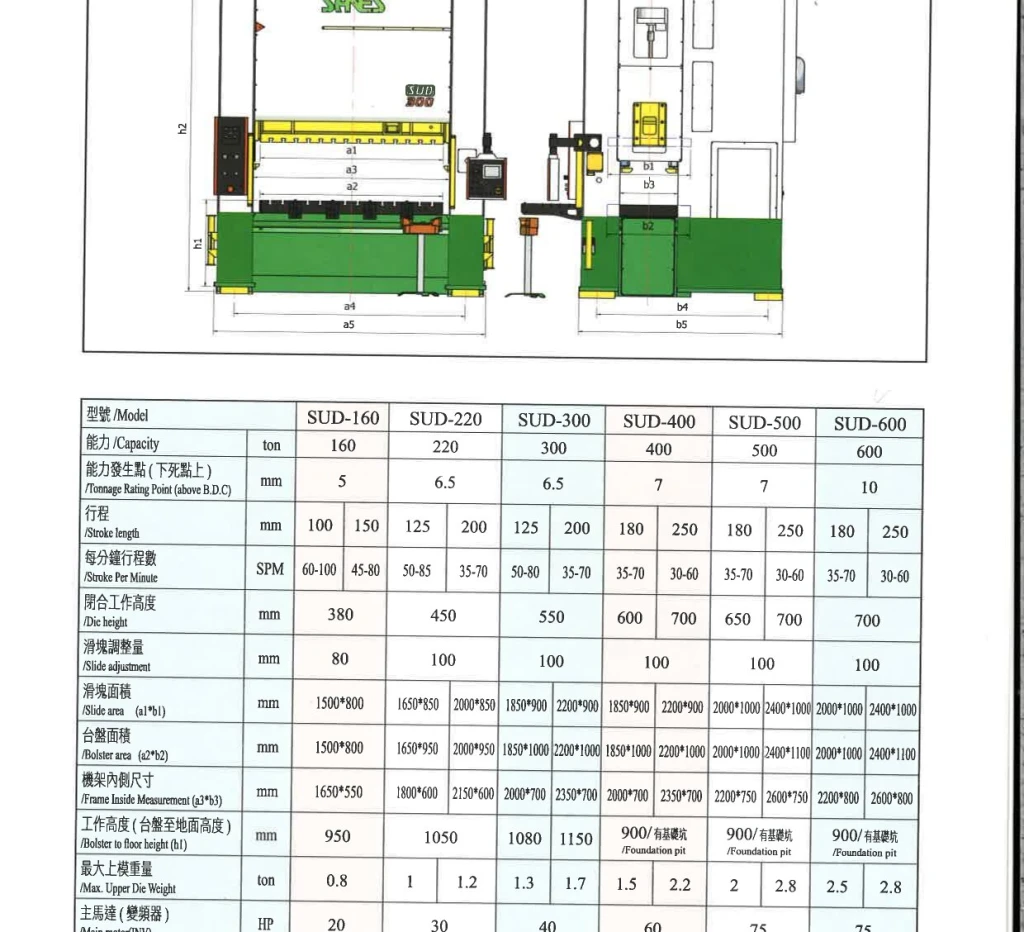

Specifications

Model	Unit	SUD -160		SUD-220		SUD-300
Capacity	Ton	160		220		300
Tonnage Rating Point (Above B.D.C)	mm	5		6.5		6.5
Stroke Lenght	mm	100	150	125	200	150	200
Stroke Per Minute	mm	60-100	45-80	50-85	35-70	45-75	35-70
Die Height	mm	380		450		550
Slide Adjustment	mm	80		100		100
Slide Area	mm	1500x800		1650x850	2000x850	1850x900	2200x900
Bolster Area	mm	1500x800		1650x950	2000x950	1850x1000	2200x1000
Main Motor	HPxP	20HP(INV)		30HP(INV)		40HP(INV)
Requirred Pressure	kg/cm²	5		5		5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.

Model	Unit	SUD -400		SUD-500		SUD-600
Capacity	Ton	400		500		600
Tonnage Rating Point (Above B.D.C)	mm	7		7		7
Stroke Lenght	mm	180	250	200	300	200	300
Stroke Per Minute	S.PM	35-70	30-60	30-65	25-50	30-60	25-50
Die Height	mm	600	700	650	700	650	700
Slide Adjustment	mm	100		100		100
Slide Area	mm	1850x900	2200x900	2200x1000	2400x1000	2000x1000	2400x1000
Bolster Area	mm	1850x1000	2200x1000	2200x1000	2400x1100	2000x1000	2400x1100
Main Motor	HPxP	60HP(INV)		75HP(INV)		75HP(INV)
Requirred Pressure	kg/cm²	5		5		5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.
