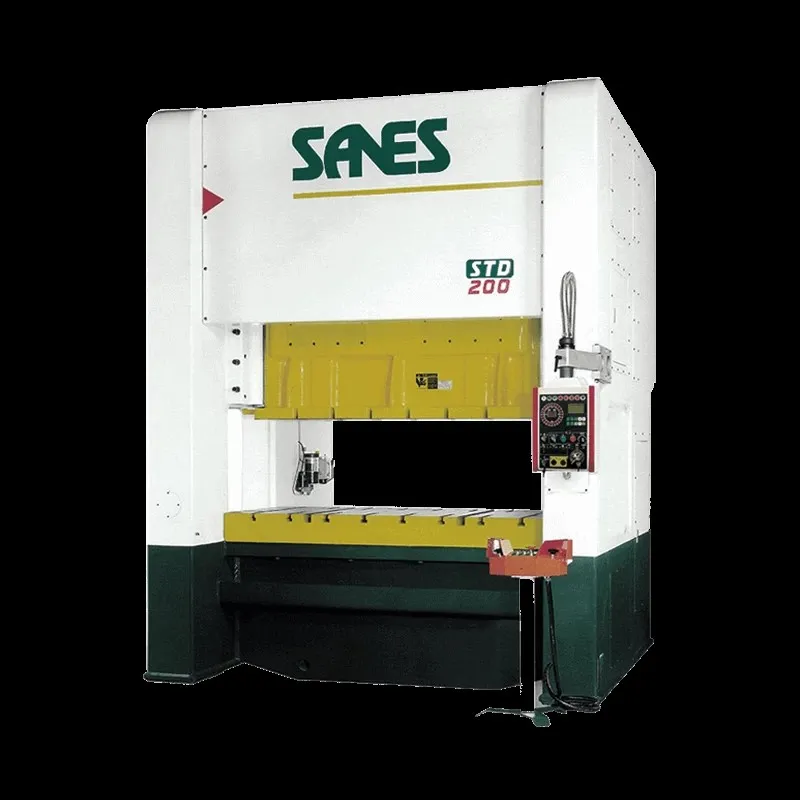

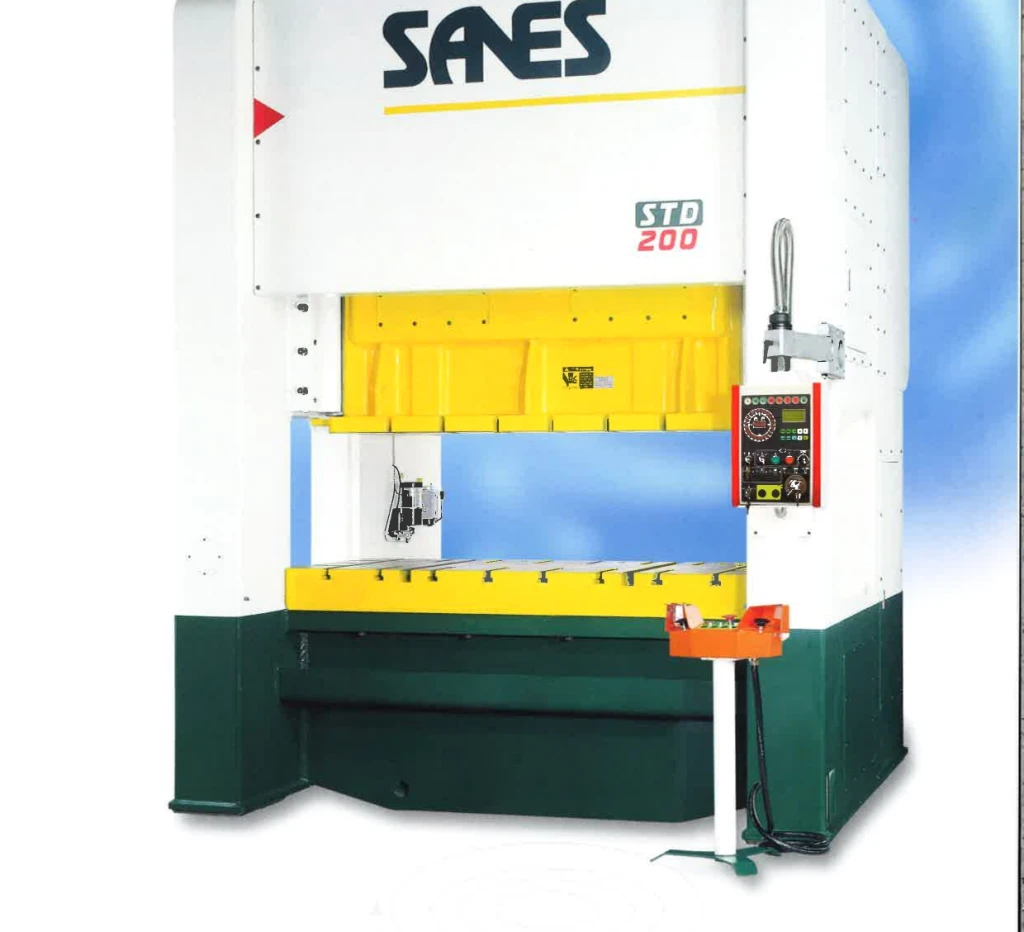

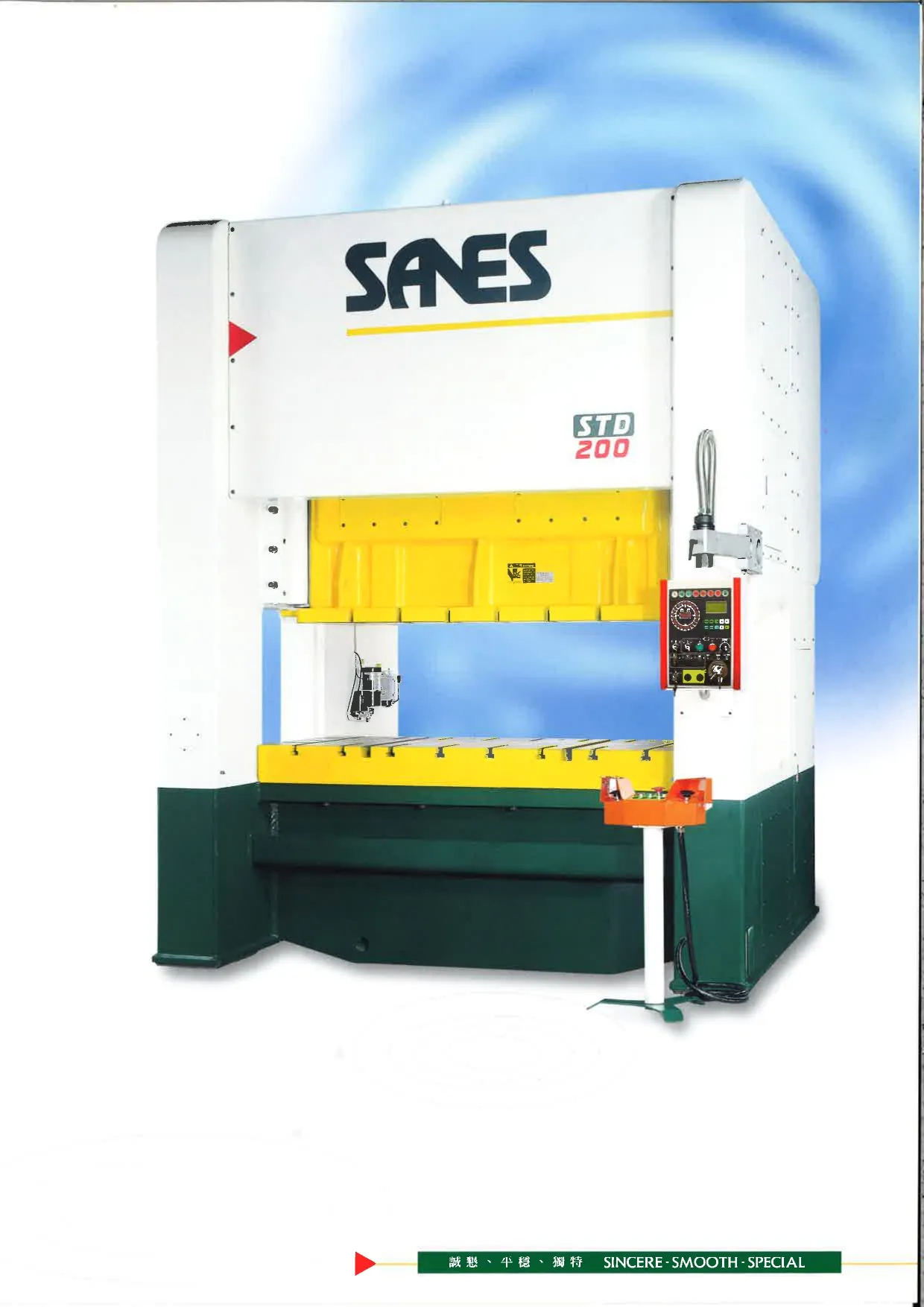

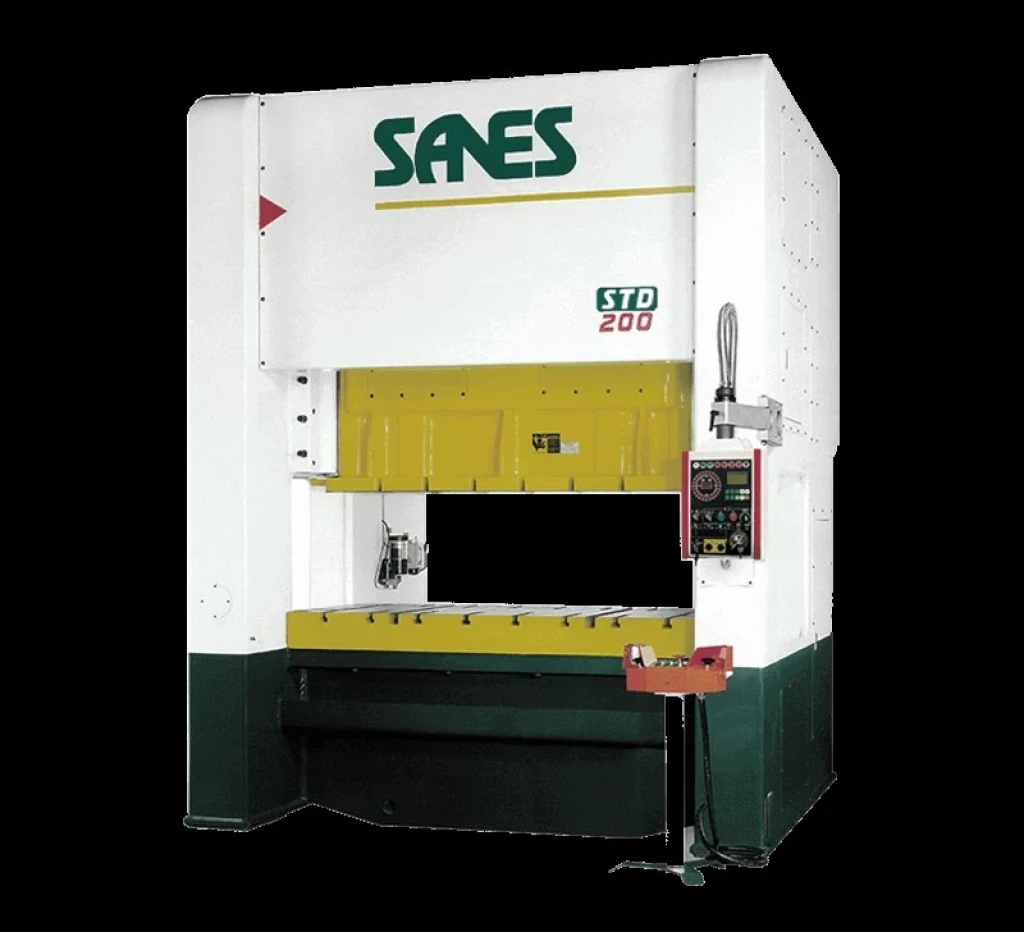

STD Series | Two Point Press

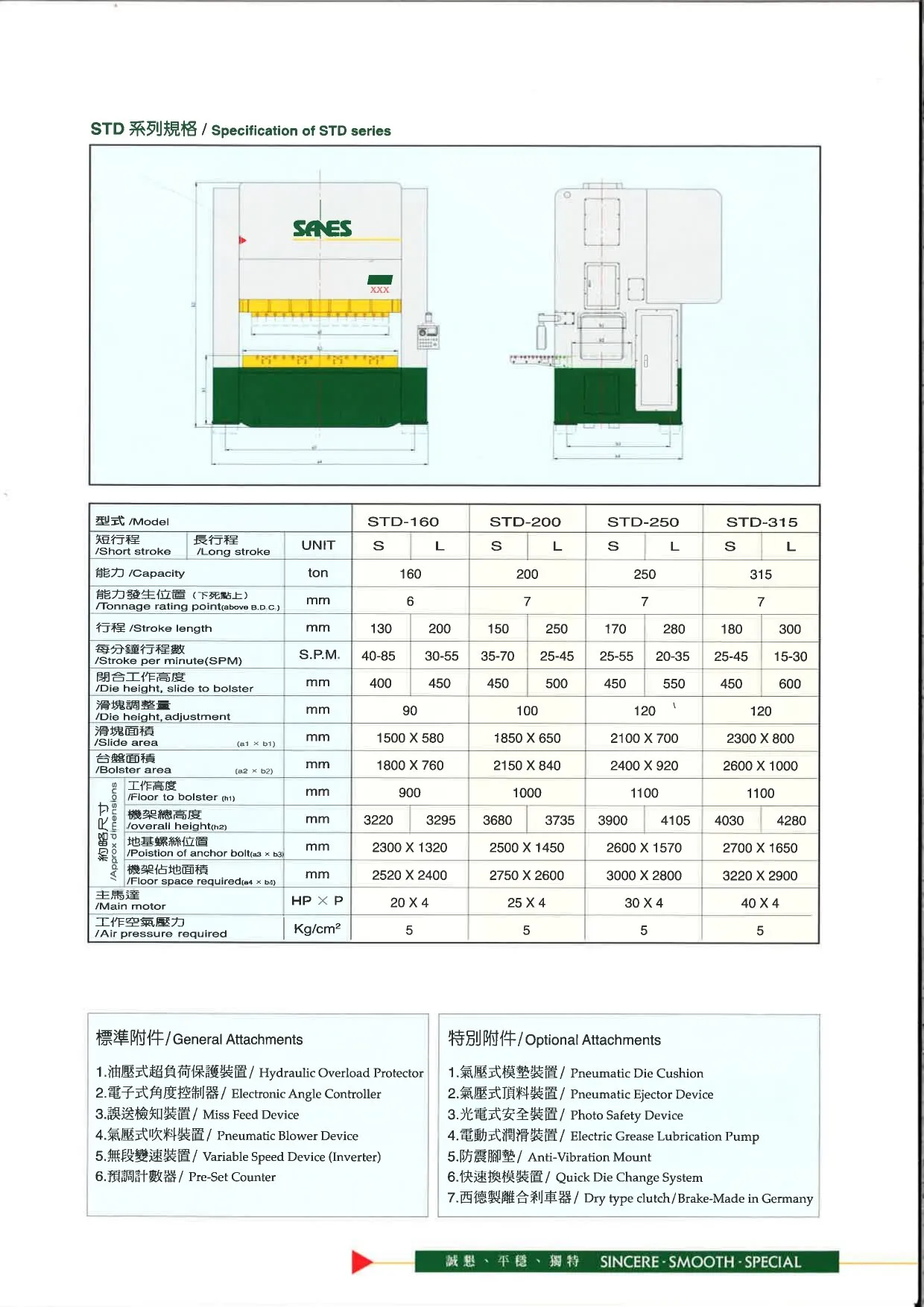

Specifications

Model		Unit	STD -160	STD-200	STD-250	STD-300
Capacity		Ton	160	200	250	300
Tonnage Rating Point (Above B.D.C)	Short type	mm	5	5	6	10
Tonnage Rating Point (Above B.D.C)	Long type	mm	8	8	9	13
Stroke Lenght	Short type	mm	130	150	170	180
Stroke Lenght	Long type	mm	200	250	280	300
Stroke Per Minute	Short type	mm	40-80	35-75	25-55	20-45
Stroke Per Minute	Long type	mm	30-55	25-50	20-35	20-35
Die Height		mm	400	450	450	450
Slide Adjustment		mm	90	100	120	120
Slide Area		mm	1500x580	1850x650	2100x700	2200x800

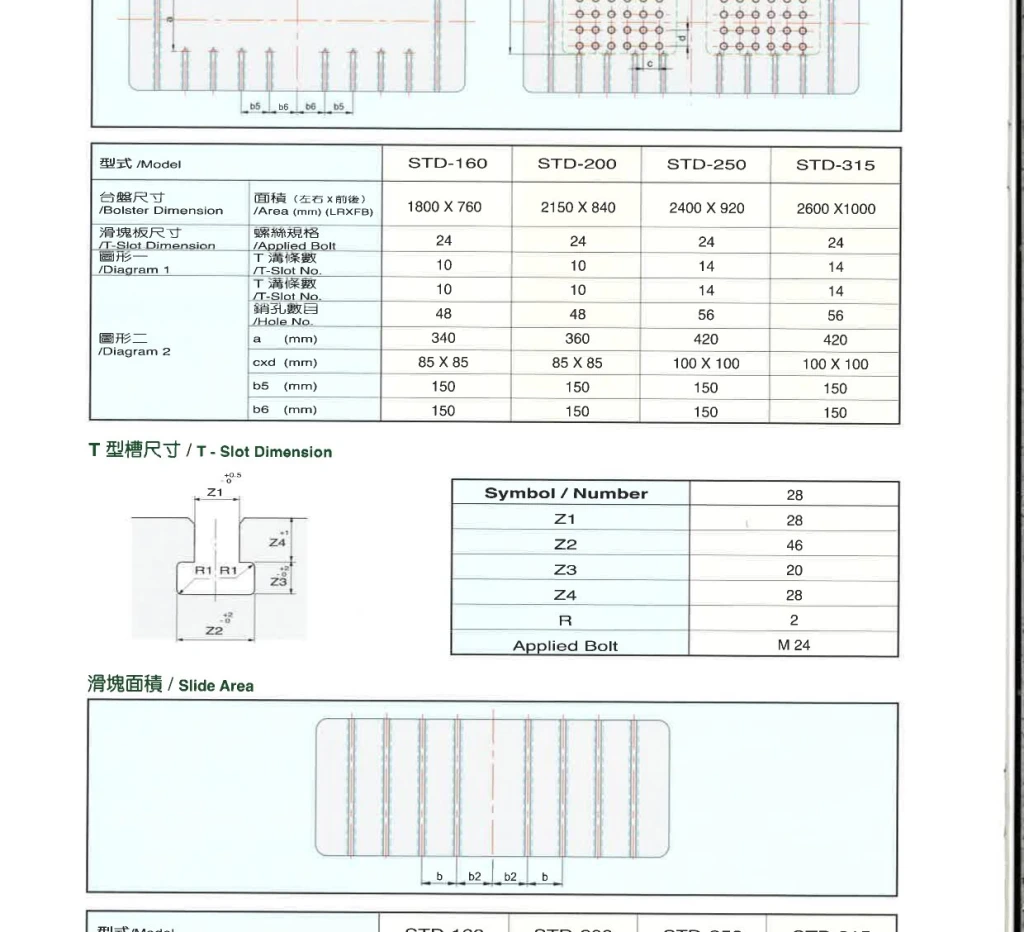

Bolster Area		mm	1800x760	2150x8540	2200x920	2300x100
Main Motor		HPxP	20X4(INV)	75X4(INV)	30x4(INV)	40x4(INV)
Requirred Pressure		kg/cm²	5	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.

Model		Unit	STD -400	STD-500	STD-600
Capacity		Ton	400	500	600
Tonnage Rating Point (Above B.D.C)	Short type	mm	11	11	9
Tonnage Rating Point (Above B.D.C)	Long type	mm	14	14	11
Stroke Lenght	Short type	mm	200	200	200
Stroke Lenght	Long type	mm	350	400	400
Stroke Per Minute	Short type	mm	24-45	20-45	20-45
Stroke Per Minute	Long type	mm	20-35	20-35	20-35
Die Height		mm	450	550	550
Slide Adjustment		mm	120	150	150
Slide Area		mm	2300x800	2800x1000	3000x1200
Bolster Area		mm	2400x1000	2800x1200	3000x1400
Main Motor		HPxP	60X4(INV)	75X4(INV)	75x4(INV)
Requirred Pressure		kg/cm²	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.
