EHW-Series

Two Point Press

Double Point Crank Less Presses

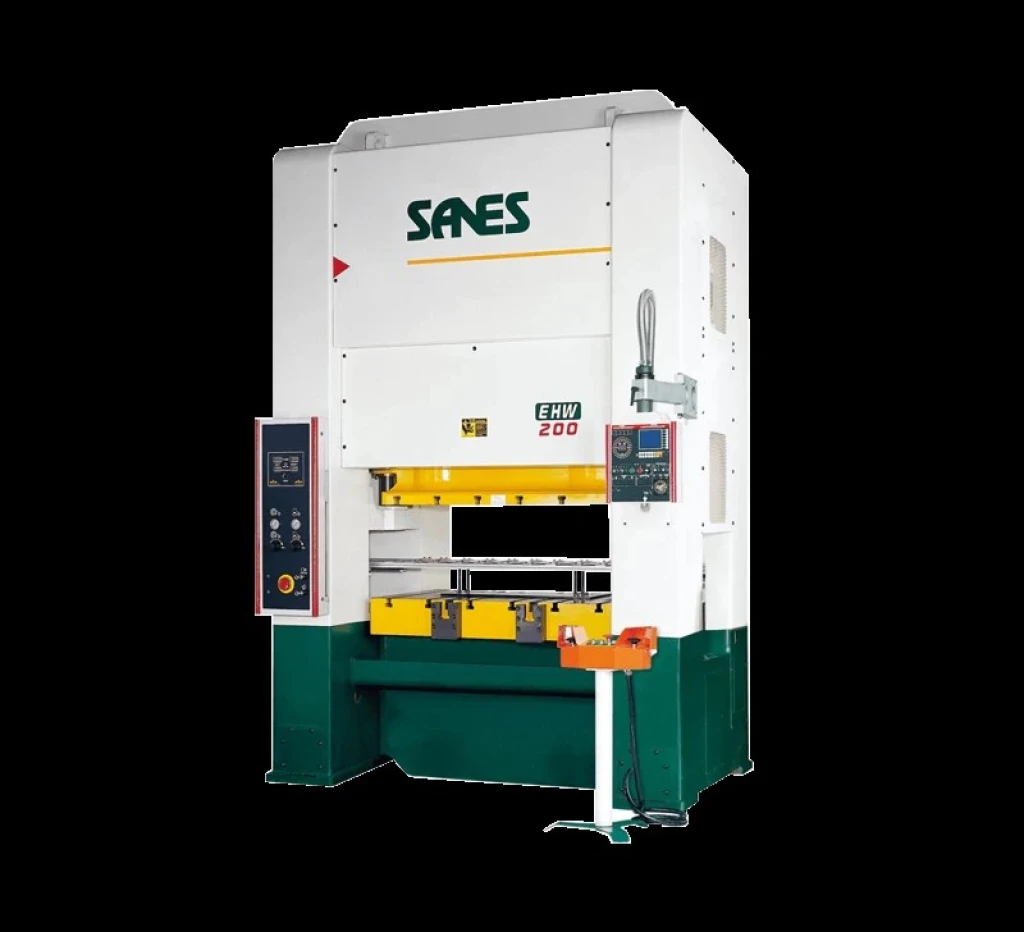

EHW Series

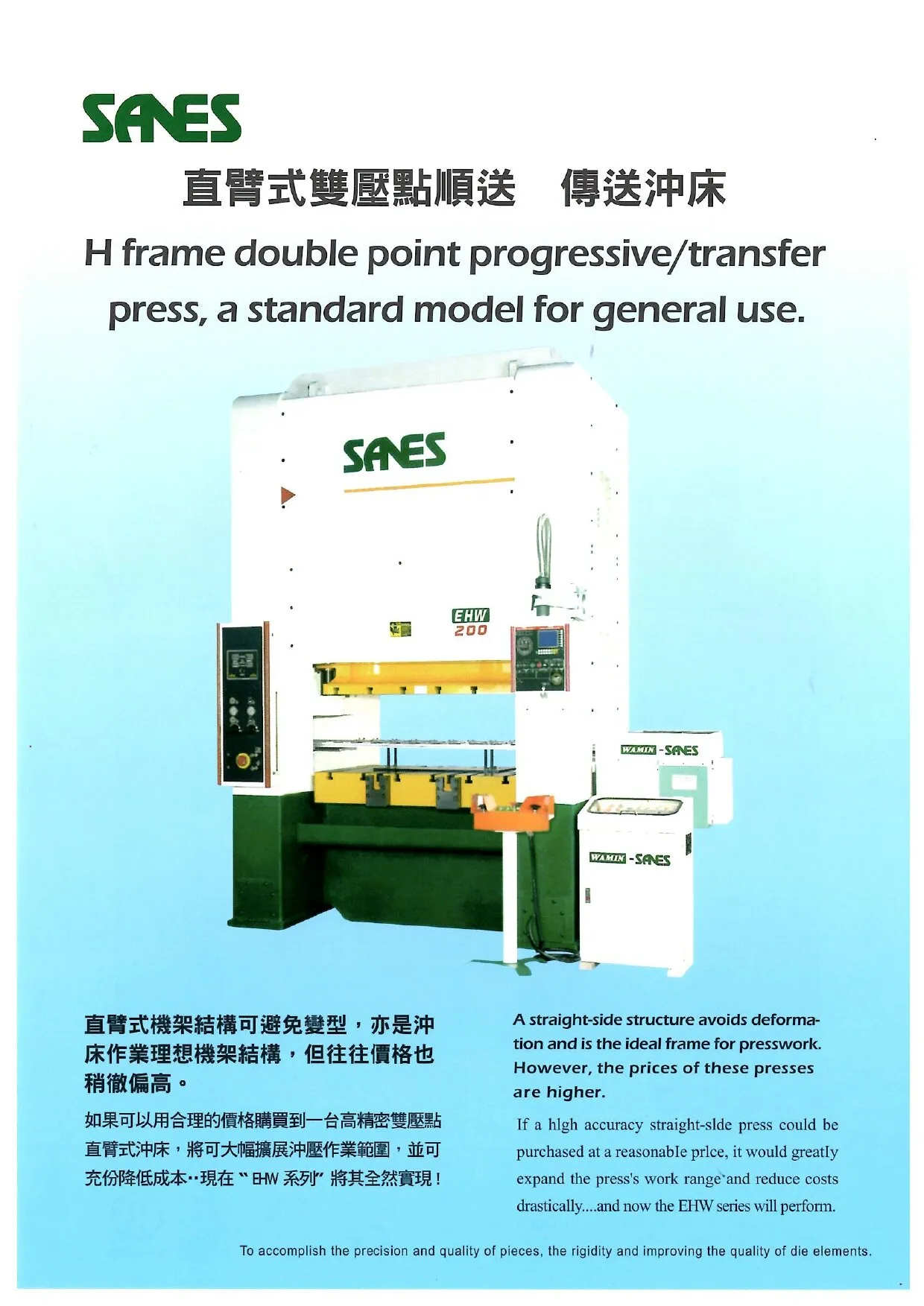

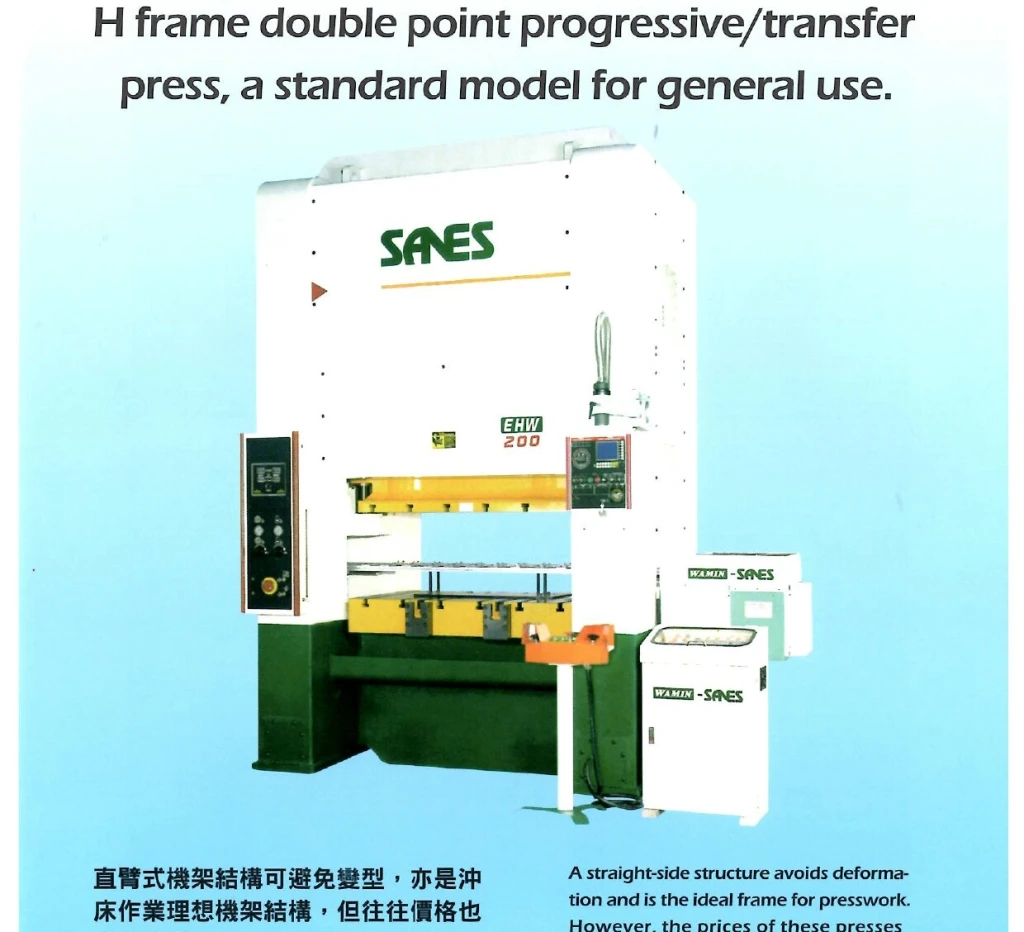

H frame double point progressive/transfer press, a standard model for general use.

- A straight-side structure avoids deformation and is the ideal frame for presswork.
- However, the price of these presses is higher.
- Reduces noise and vibration considerably during operation. Improve operation environment greatly.
- If a high accuracy straight-side press could be purchased at a reasonable price, it would greatly expand the press's work range and reduce costs drastically......and now the EHW series will perform.

CATALOG

Video

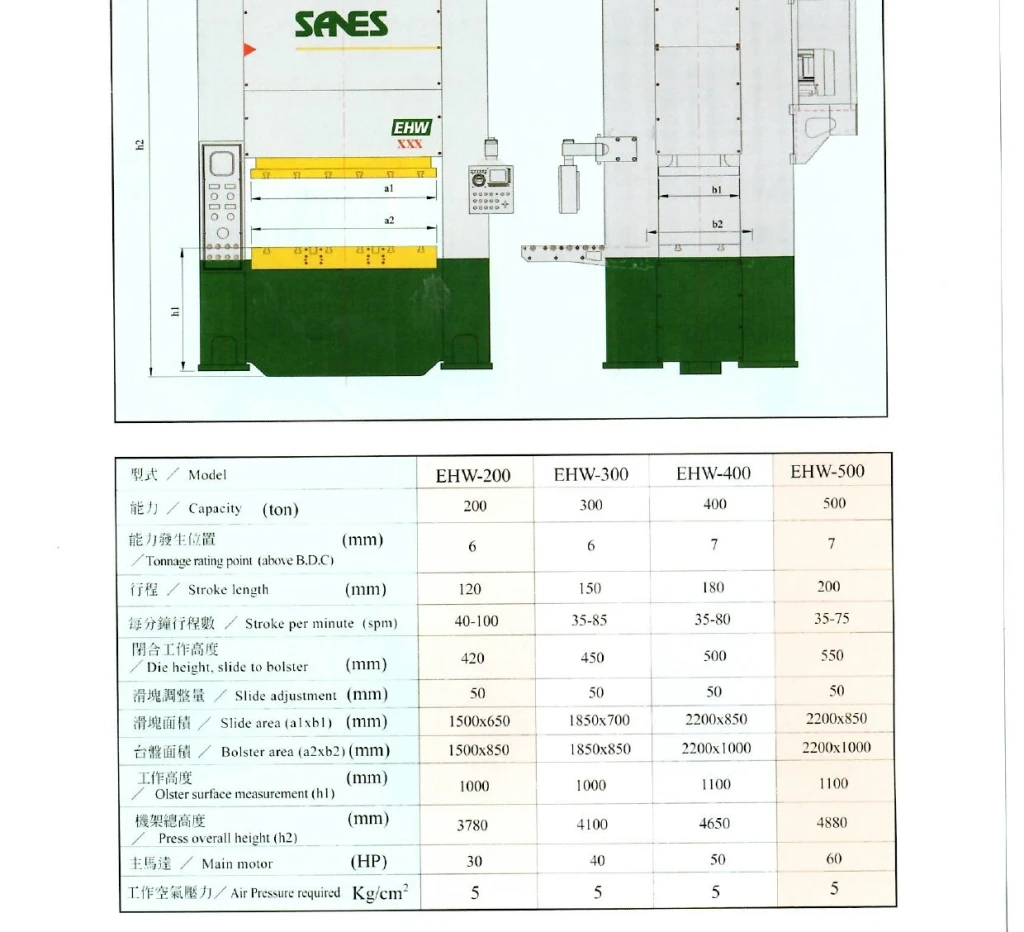

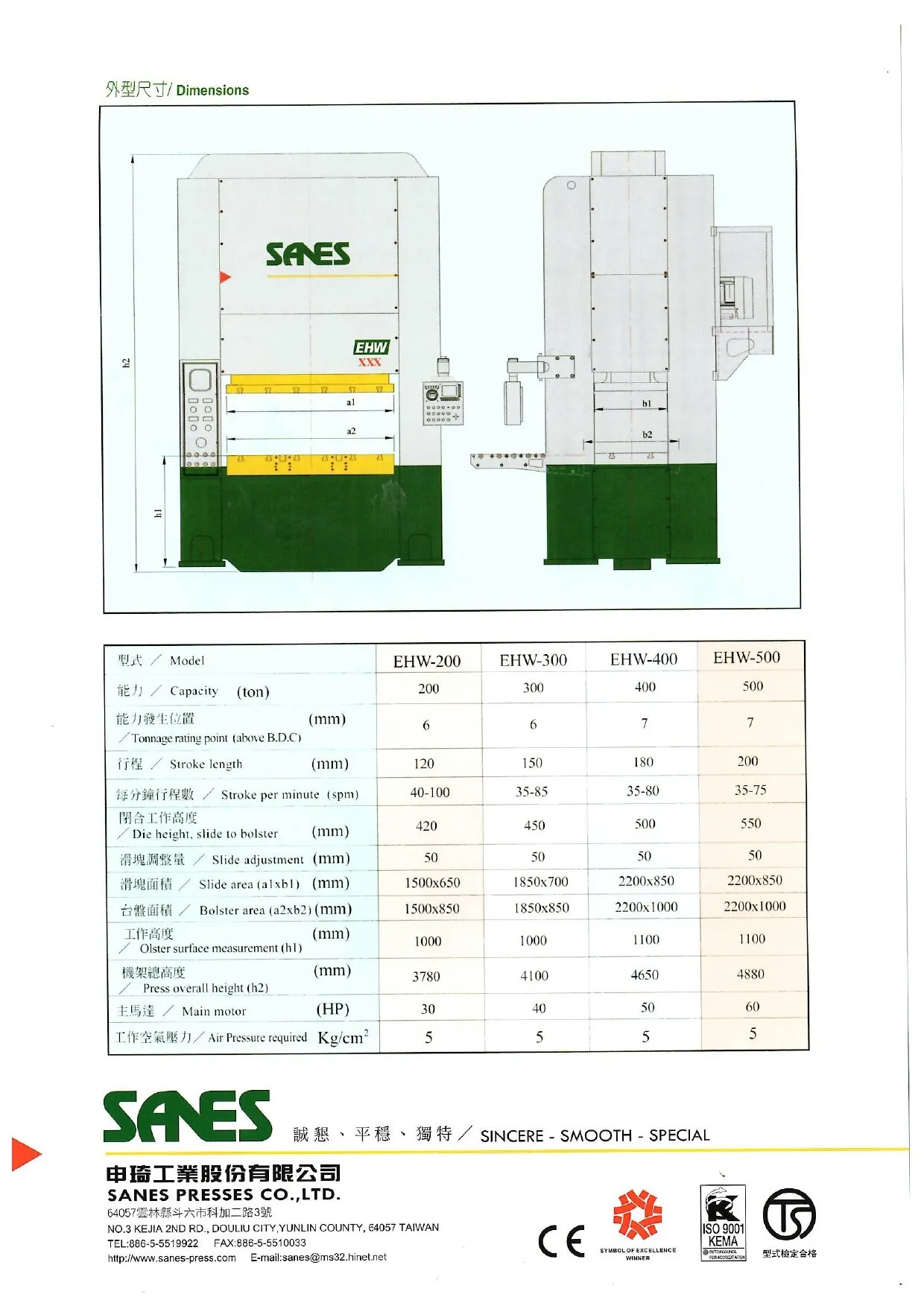

Specifications

200 Ton - 600 Ton
800 Ton - 2000 Ton

Model	Unit	EHW -200	EHW-300	EHW-400	EHW-500	EHW-600
Capacity	Ton	200	300	400	500	600
Tonnage Rating Point (Above B.D.C)	mm	6	6	7	7	10
Stroke Lenght	mm	120	150	300	300	400
Stroke Per Minute	S.P.M	40-100	35-85	20-45	20-45	20-45
Die Height	mm	420	450	600	600	900
Slide Adjustment	mm	50	50	100	100	150
Slide Area	mm	1800x650	2000x800	2400x1200	2500x1300	2500x1300
Bolster Area	mm	1800x850	2000x1000	2400x1200	2500x1500	2500x1500
Main Motor	HPxP	30HP(INV)	40HP(INV)	50Hp(INV)	60HP(INV)	100HP(INV)
Requirred Pressure	kg/cm²	5	5	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.

Model	Unit	EHW -800	EHW-1000	EHW-1500	EHW-2000
Capacity	Ton	800	1000	1500	2000
Tonnage Rating Point (Above B.D.C)	mm	10	10	13	13
Stroke Lenght	mm	400	400	500	500
Stroke Per Minute	S.P.M	20-40	20-40	Oct-20	Oct-20
Die Height	mm	900	900	1000	1000
Slide Adjustment	mm	150	150	150	150
Slide Area	mm	3000x1500	3500x1500	4000x1500	4500x1500
Bolster Area	mm	3000x1500	3500x1500	4000x1500	4500x1500
Main Motor	HPxP	125HP(INV)	125HP(INV)	250HP(INV)	300HP(INV)
Requirred Pressure	kg/cm²	5	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.
