CBL Series

Two Point Press

Double Point Link Presses

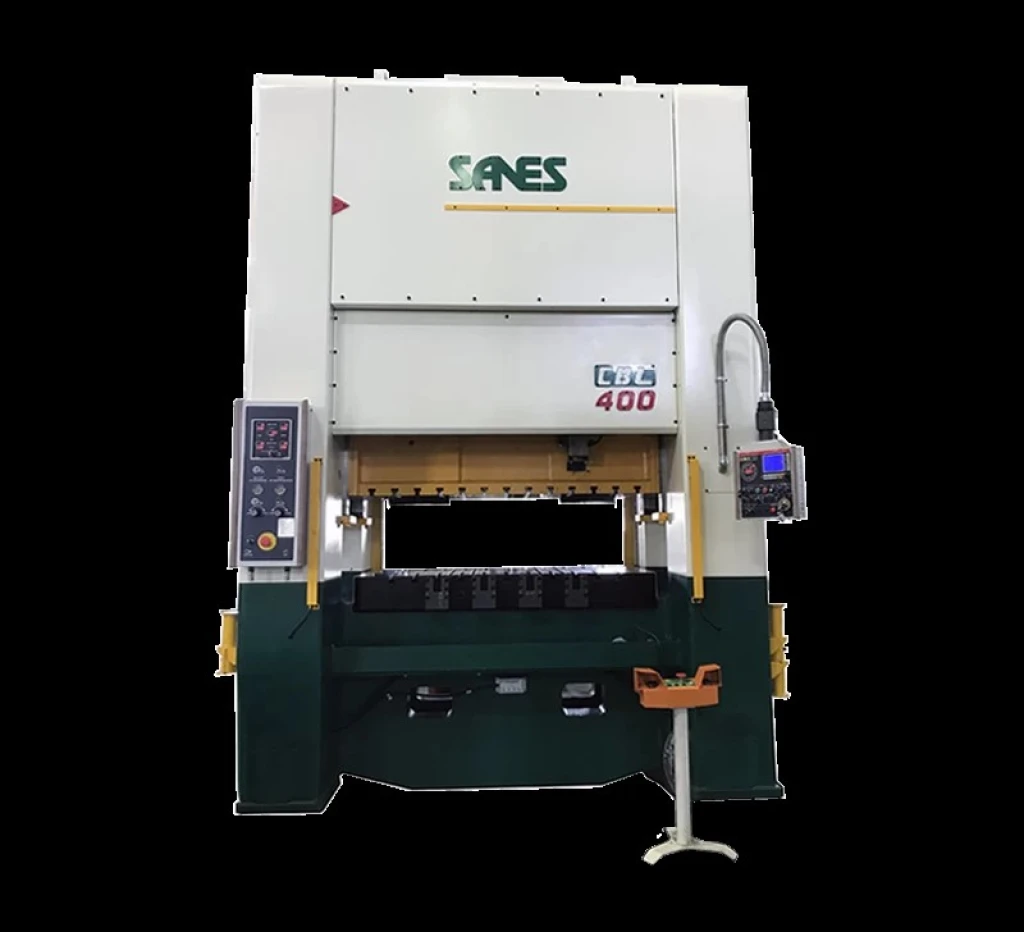

CBL Series

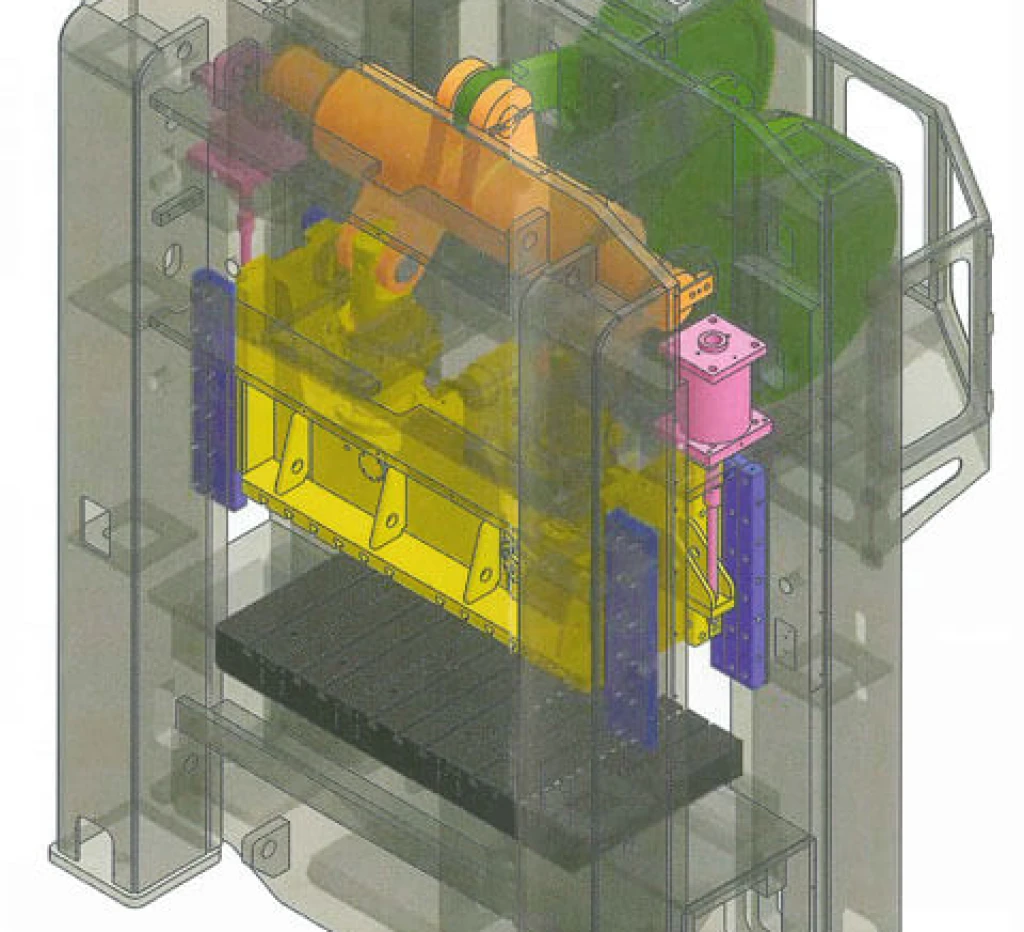

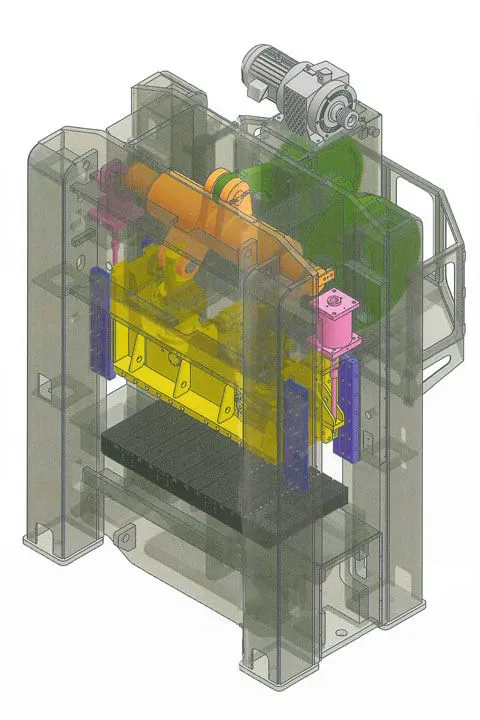

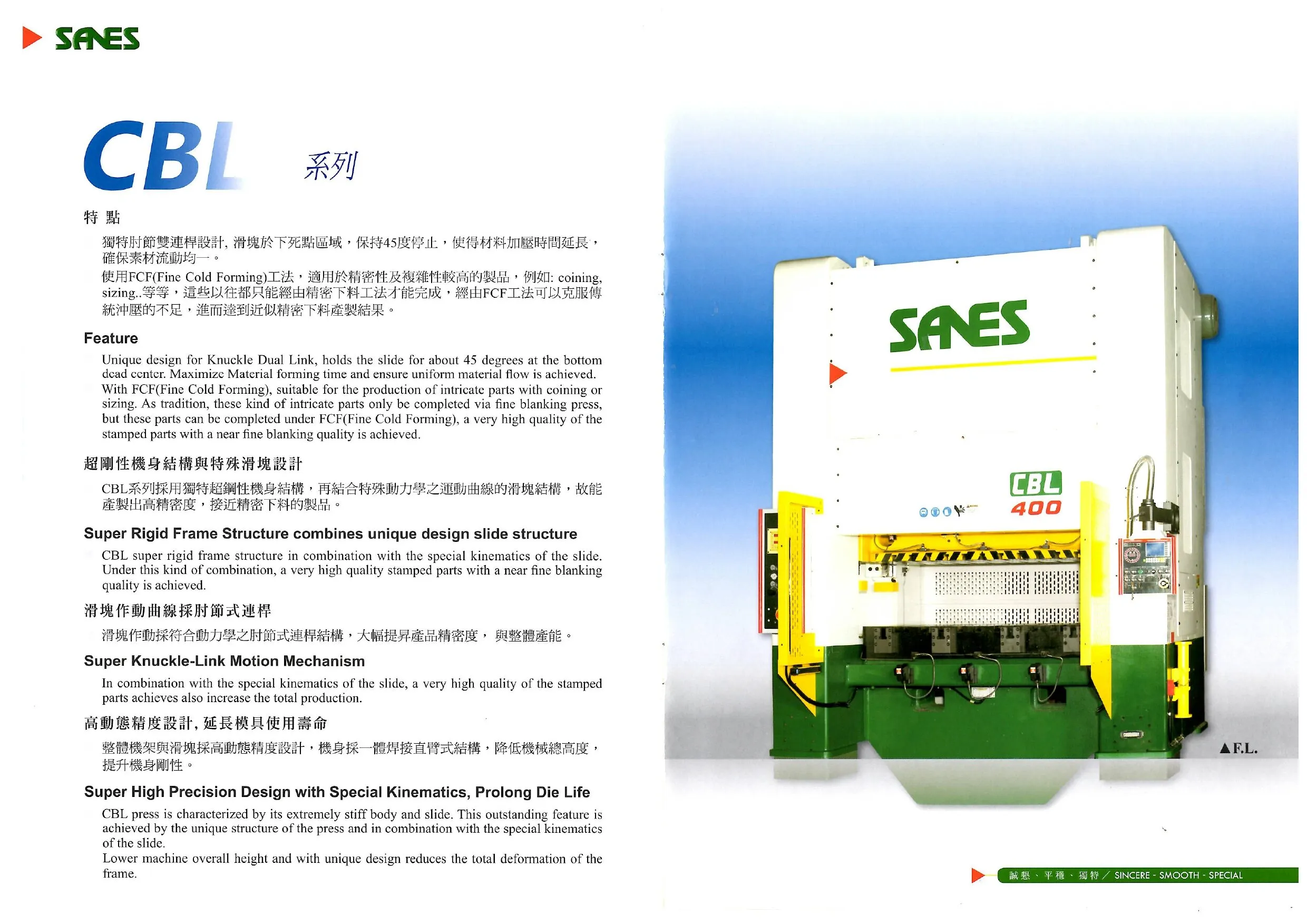

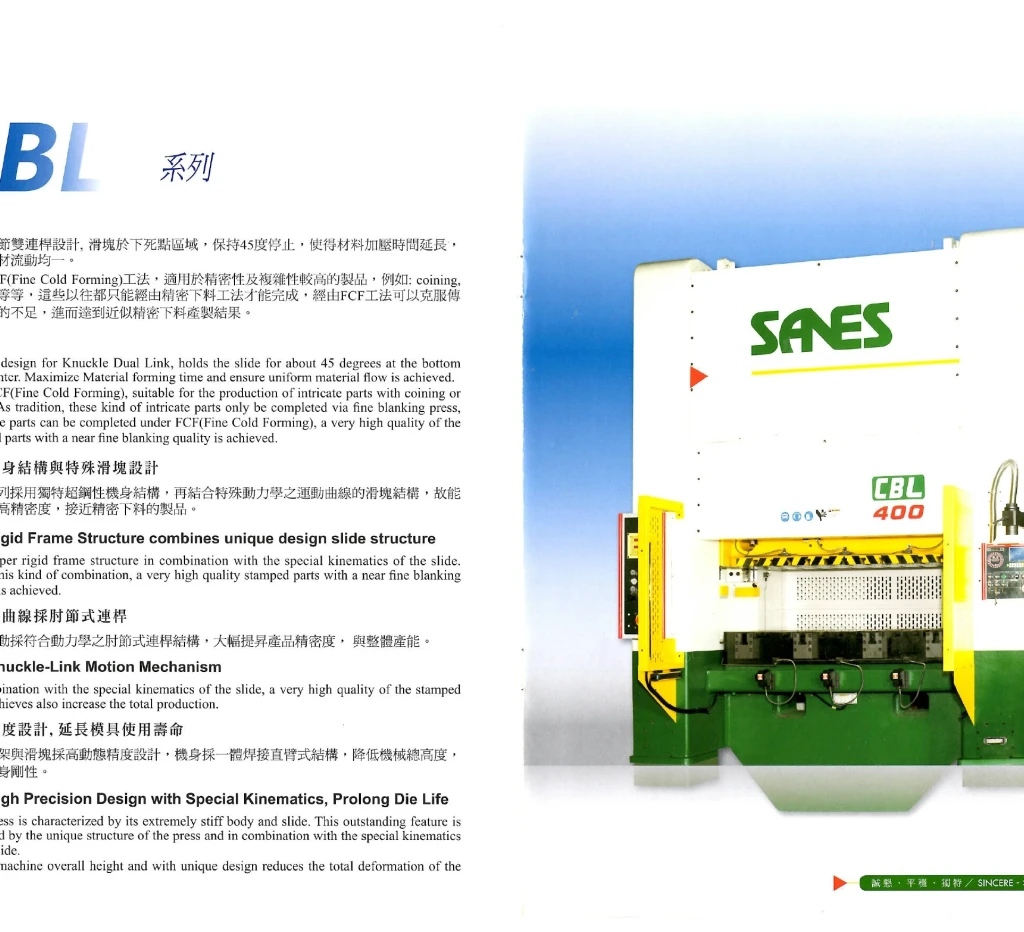

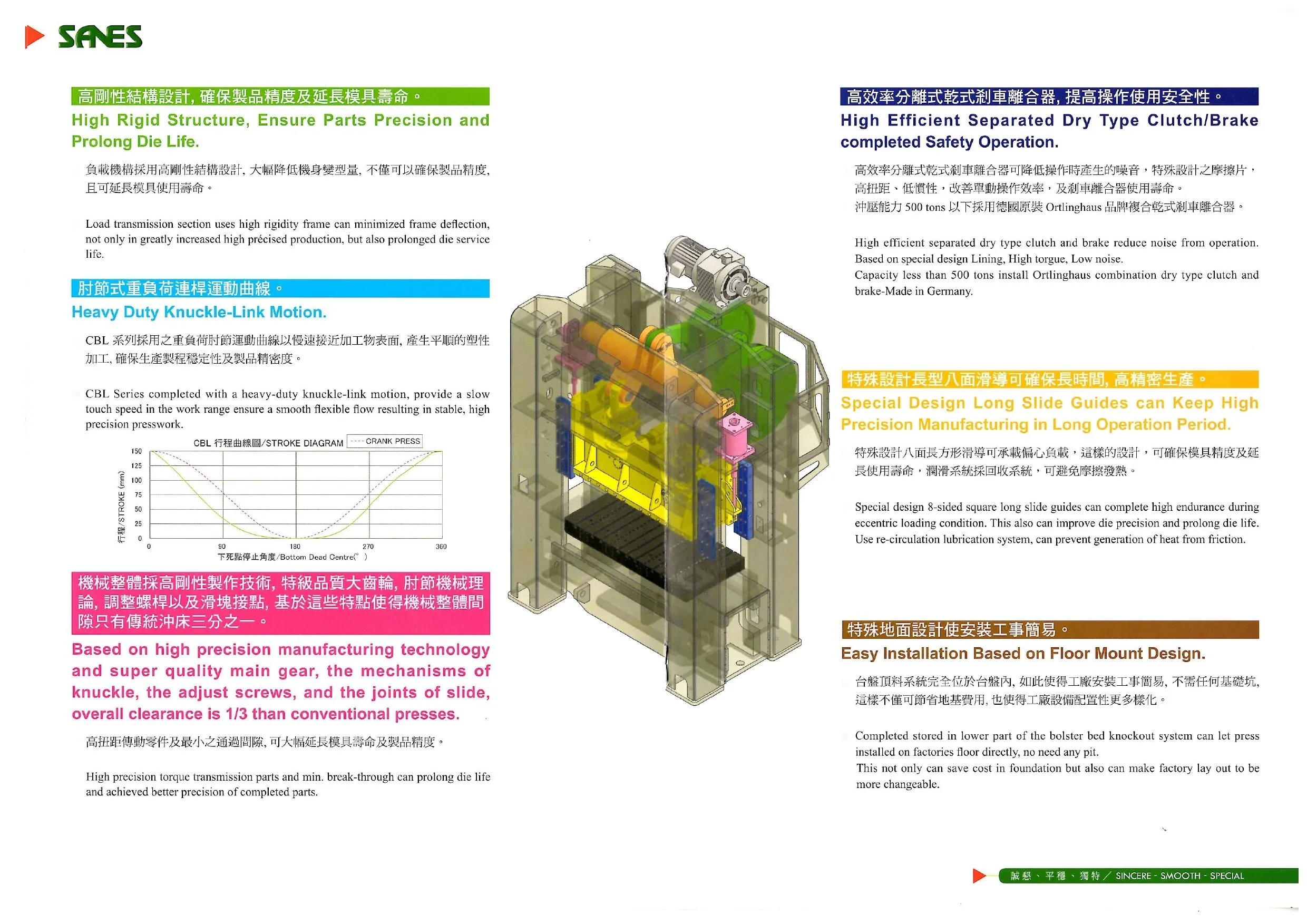

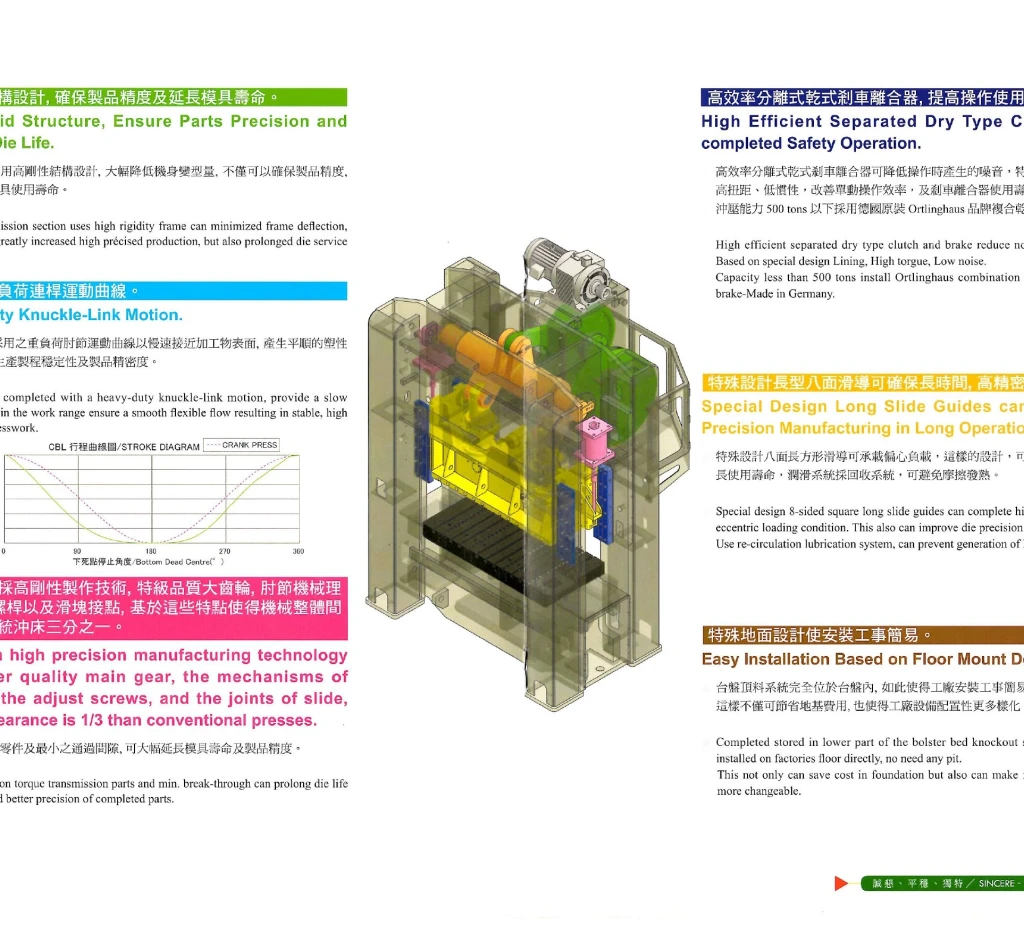

Unique design for Knuckle Dual Link, holds the slide for about 45 degrees at the bottom dead center. Maximize Material forming time and ensure uniform material flow is achieved.

With FCF(Fine Cold Forming), suitable for the production of intricate parts with coining or sizing. As tradition, these kind of intricate parts only be completed via fine blanking press, but these parts can be completed under FCF(Fine Cold Forming), a very high quality of the stamped parts with a near fine blanking quality is achieved.

CATALOG

Video

Specifications

200 Ton - 500 Ton
600 Ton - 1000 Ton

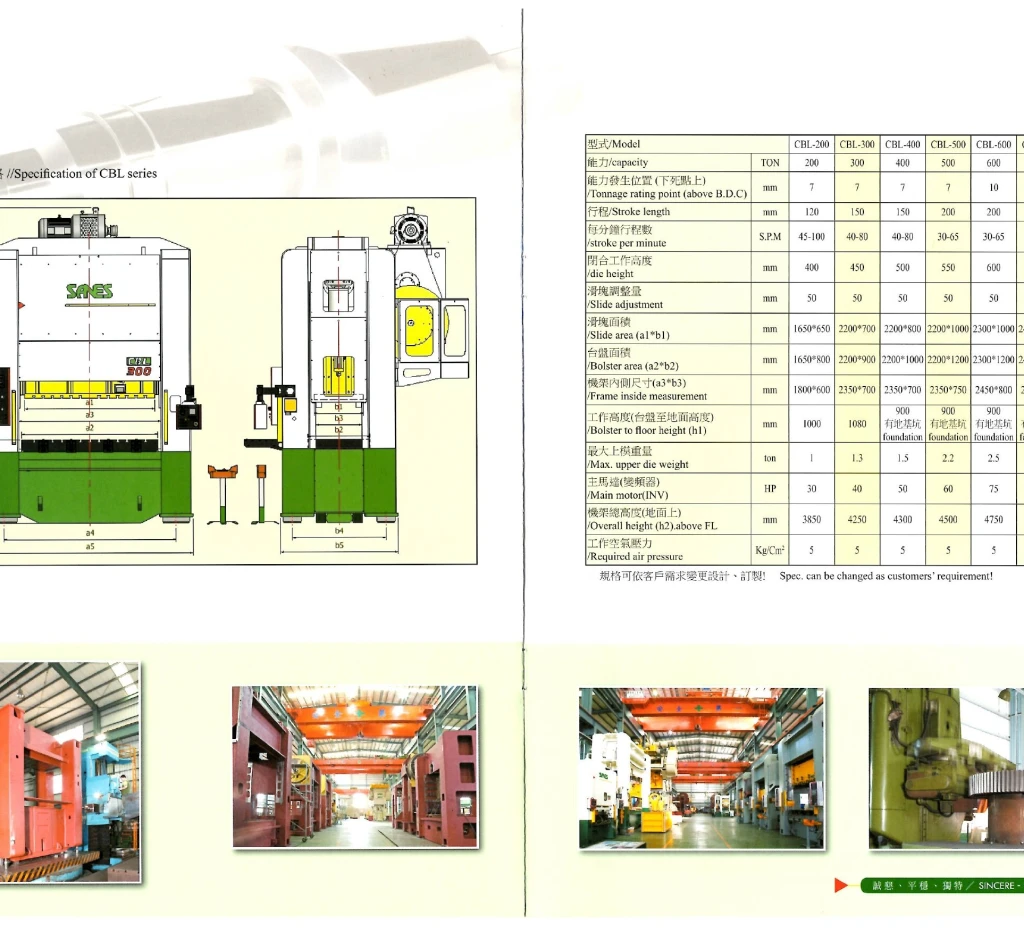

Model	Unit	CBL -200	CBL-300	CBL-400	CBL-500
Capacity	Ton	200	300	400	500
Tonnage Rating Point (Above B.D.C)	mm	7	7	7	7
Stroke Lenght	mm	120	150	150	200
Stroke Per Minute	mm	45-100	40-80	40-80	30-65
Die Height	mm	400	450	500	550
Slide Adjustment	mm	50	50	50	50
Slide Area	mm	1650x650	2000x700	2200x800	2200x1000
Bolster Area	mm	1650x800	2000x900	2200x1000	2200x1200
Main Motor	HPxP	30HP(INV)	40HP(INV)	50HP(INV)	60HP(INV)
Requirred Pressure	kg/cm²	5	5		5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.

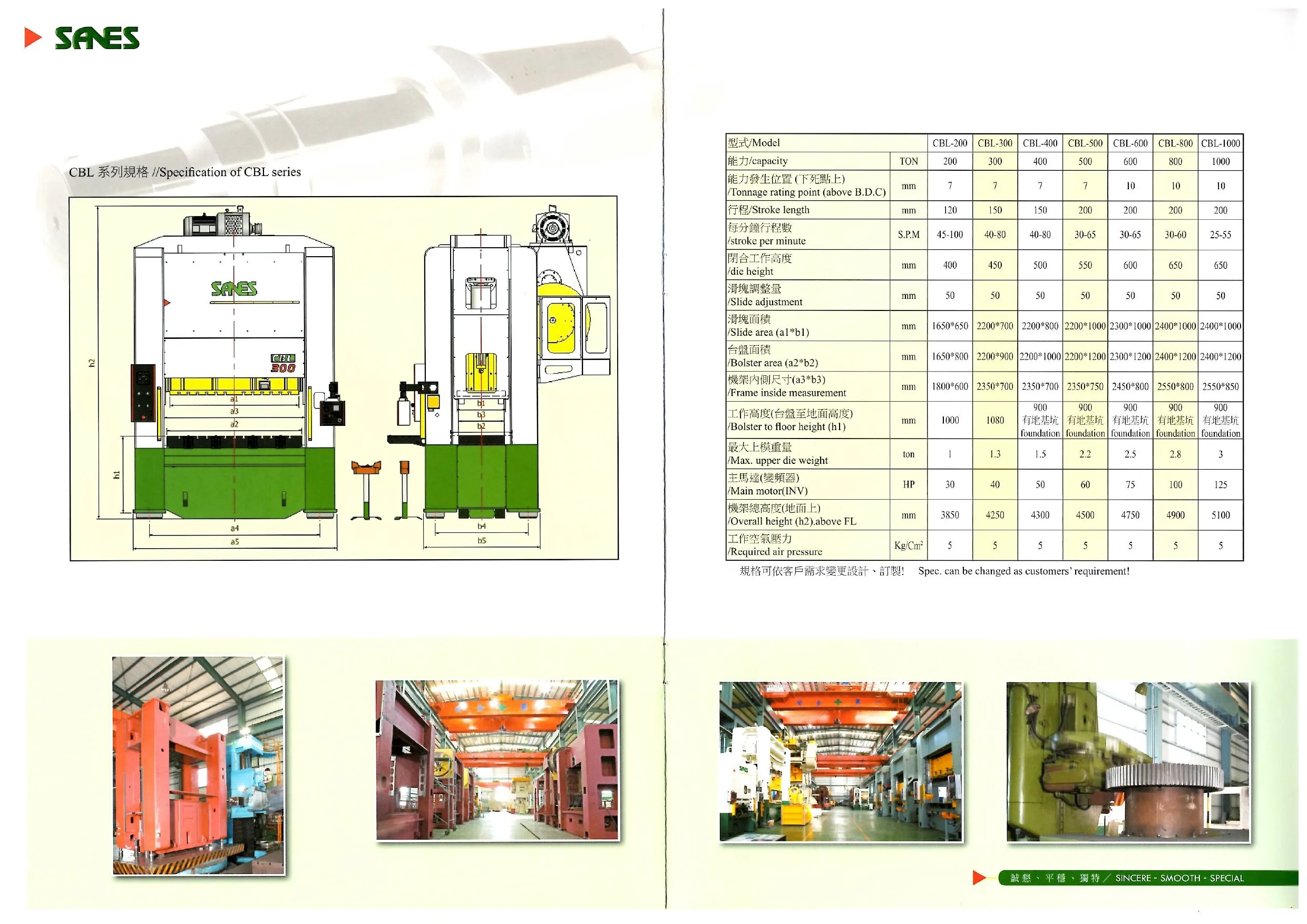

Model	Unit	CBL -600	CBL-800	CBL-1000
Capacity	Ton	600	800	1000
Tonnage Rating Point (Above B.D.C)	mm	10	10	10
Stroke Lenght	mm	200	200	200
Stroke Per Minute	mm	30-65	30-60	25-55
Die Height	mm	600	650	700
Slide Adjustment	mm	50	50	50
Slide Area	mm	2300x1000	2400x1000	2500x1100
Bolster Area	mm	2300x1200	2400x1200	2500x1300
Main Motor	HPxP	75HP(INV)	100HP(INV)	125Hp(INV)
Requirred Pressure	kg/cm²	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice .
- Custom spesifications are available upon request.
