Two Point Press

Double Crank Power Presses
STD Series

Change Traditional C Type Frame Into Straight Side Frame

- High rigidity frame structure eliminating the opening distortion, fully realizing the highly efficient blanking and deep drawing operation.
- Eight long right angled slide guide rails provide confidence on installing high accurate die. Ensuring high accuracy manufacturing to be possible.
- Improved back side operability and die conformability of the presses.
- Large side opening for simple installation to complete single and fully automated operation on coiled material.
- High quality machine accuracy improving machine endurance, providing lasting value.
- High quality machine accuracy improving machine endurance, providing lasting value.

INQUIRE

Double Crank Link Presses
SLD Series

- Operates under high approach speed, low forming speed and high return speed.
- Reduces noise and vibration considerably during operation. Improves operation environment greatly.
Realizes high precision, high rigidity and high throughput production.

Double Point Link Presses

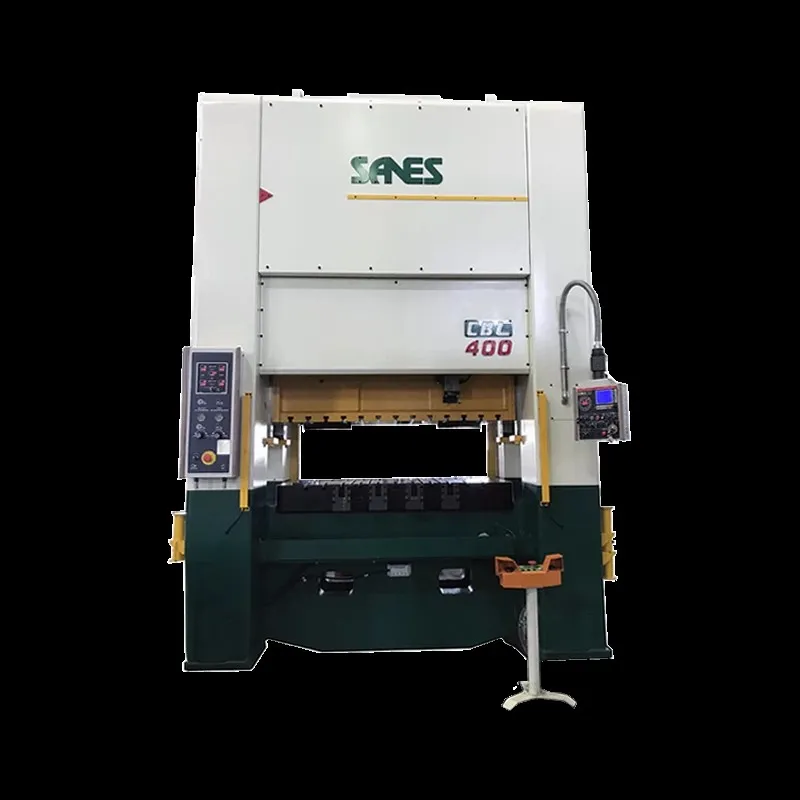

CBL Series

Unique design for Knuckle Dual Link, holds the slide for about 45 degrees at the bottom dead center. Maximize Material forming time and ensure uniform material flow is achieved.

With FCF(Fine Cold Forming), suitable for the production of intricate parts with coining or sizing. As tradition, these kind of intricate parts only be completed via fine blanking press, but these parts can be completed under FCF(Fine Cold Forming), a very high quality of the stamped parts with a near fine blanking quality is achieved.

Double Point Crank Less Presses

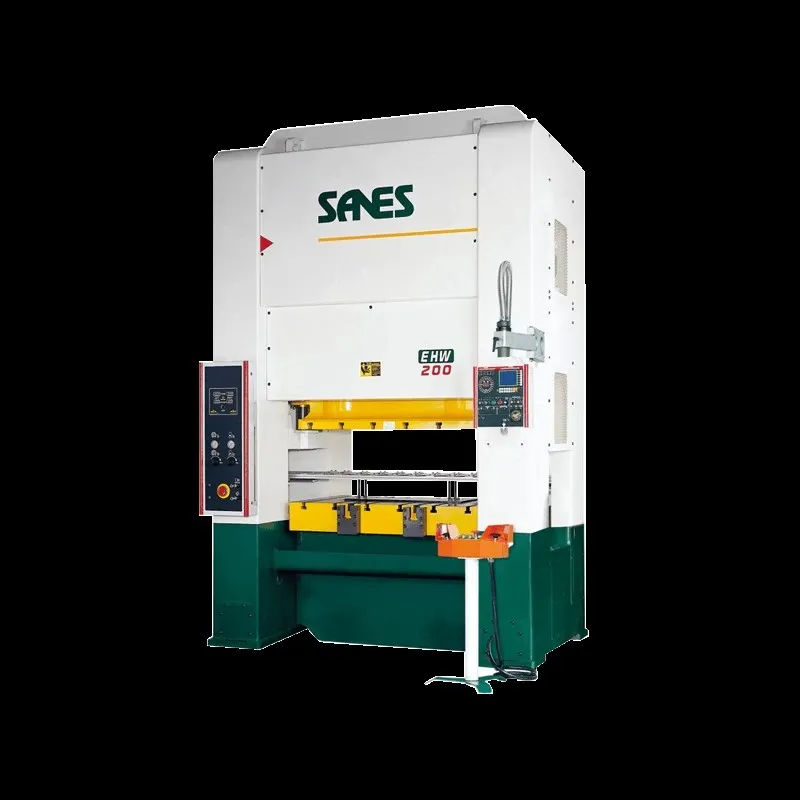

EHW Series

H frame double point progressive/transfer press, a standard model for general use.

- A straight-side structure avoids deformation and is the ideal frame for presswork.
- However, the price of these presses is higher.
- Reduces noise and vibration considerably during operation. Improve operation environment greatly.
- If a high accuracy straight-side press could be purchased at a reasonable price, it would greatly expand the press's work range and reduce costs drastically......and now the EHW series will perform.

Double Point Crank Less Presses
- Sheet Cold Forging- Fine Blanking - Deep Drawing
SUD Series

Complete a perfect performance for pressed work!

Innovative Double Crank None Connect Rod Presses for New Generation High Precision, Low Deflection- Improve Eccentric Load Capacity Highly.

Based on link motion curve, then frame rigidity is higher than traditional presses.
