SHP SERIES

One Point Press

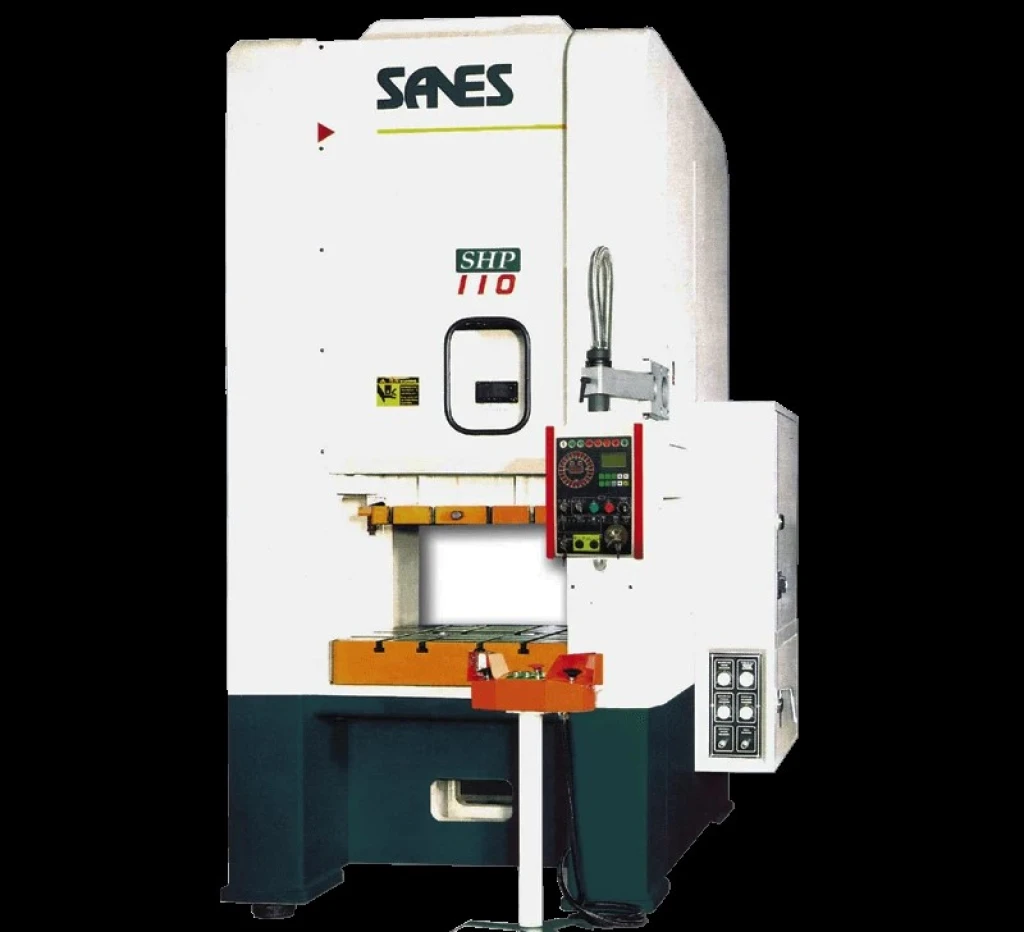

SHP Series

Deformation is the main cause of shortening die life. The H type frame press eliminates de-formation, and will reduce die maintenance costs about 50%. H type provides stable precision even in presswork, leading to high press perform. Product inspection costs will be much saved.

CATALOG

Video

Specifications

80 - 800 Ton


Model	Unit	SHP-80	SHP-110	SHP-160	SHP-200	SHP-300	SHP-600	SHP-800
Capacity	Ton	80	110	160	200	300	600	800
Tonnage Rating Point ( Above B.D.C )	mm	6	7	8	8	8	10	10
Stoke Lenght	mm	110	125	150	160	180	200	250
Stroke Per Minute	S.P.M	35-90	35-80	30-75	30-70	40-60	30-55	20-40
Die Height	mm	330	350	380	400	500	600	700
Slide Adjustment	mm	60	60	60	80	80	120	120
Slide Area	mm	600x500	650x550	700x600	750x650	850x700	950x900	1100x1000
Bolster Area	mm	800x700	850x750	900x750	950x800	1050x850	1150x1100	1300x1200
Main Motor	HPxP	10HP(INV)	15HP(INV)	20HP(INV)	25HP(INV)	40HP(INV)	60HP(INV)	100HP(INV)
Required Air Pressure	kg/cm²	5	5	5	5	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice.
