SCP SERIES

One Point Press

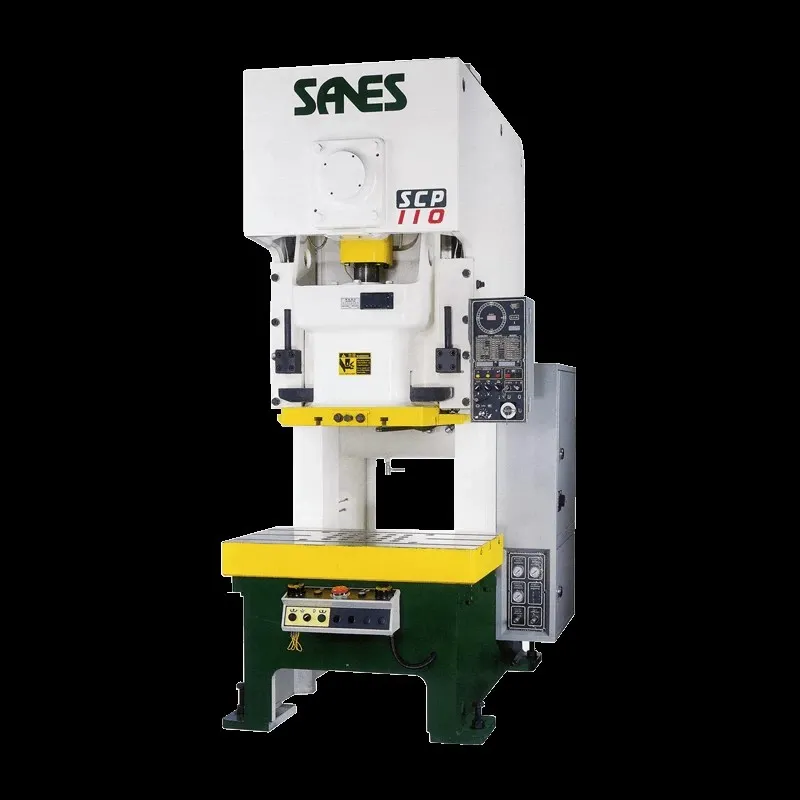

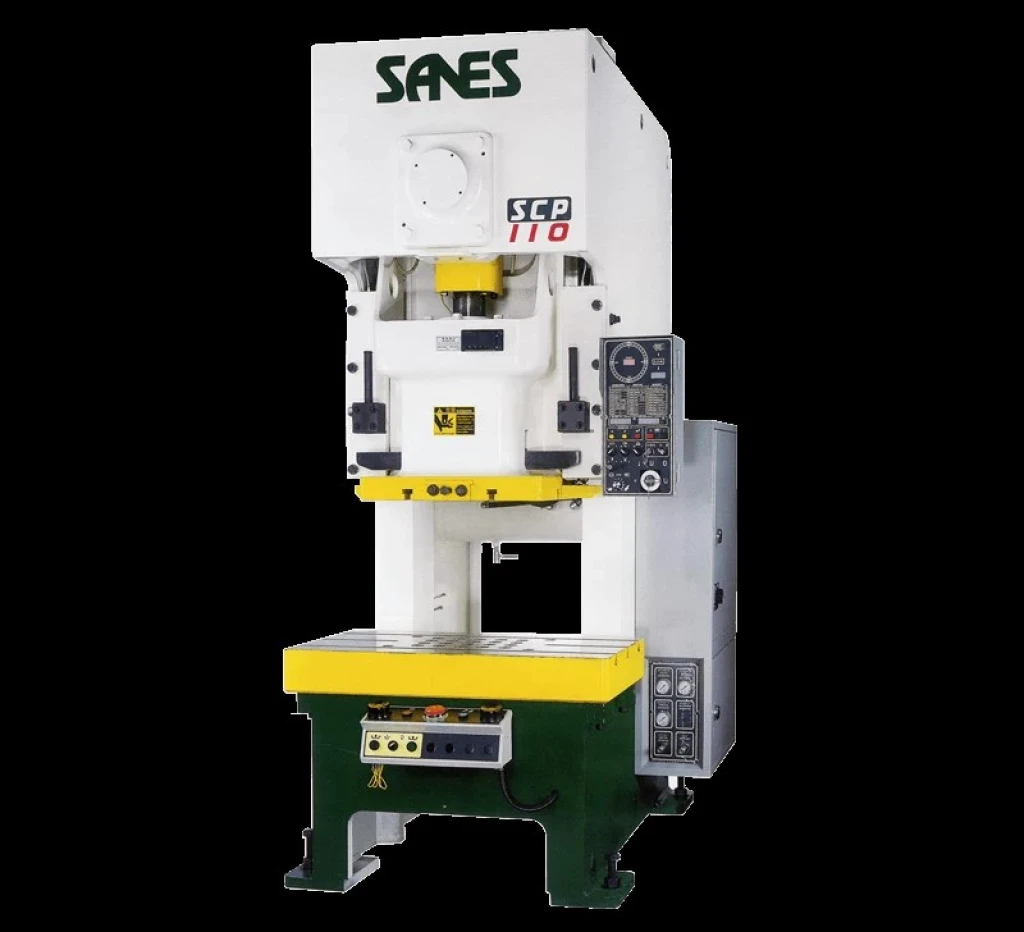

C Type Power Presses
SCP Series

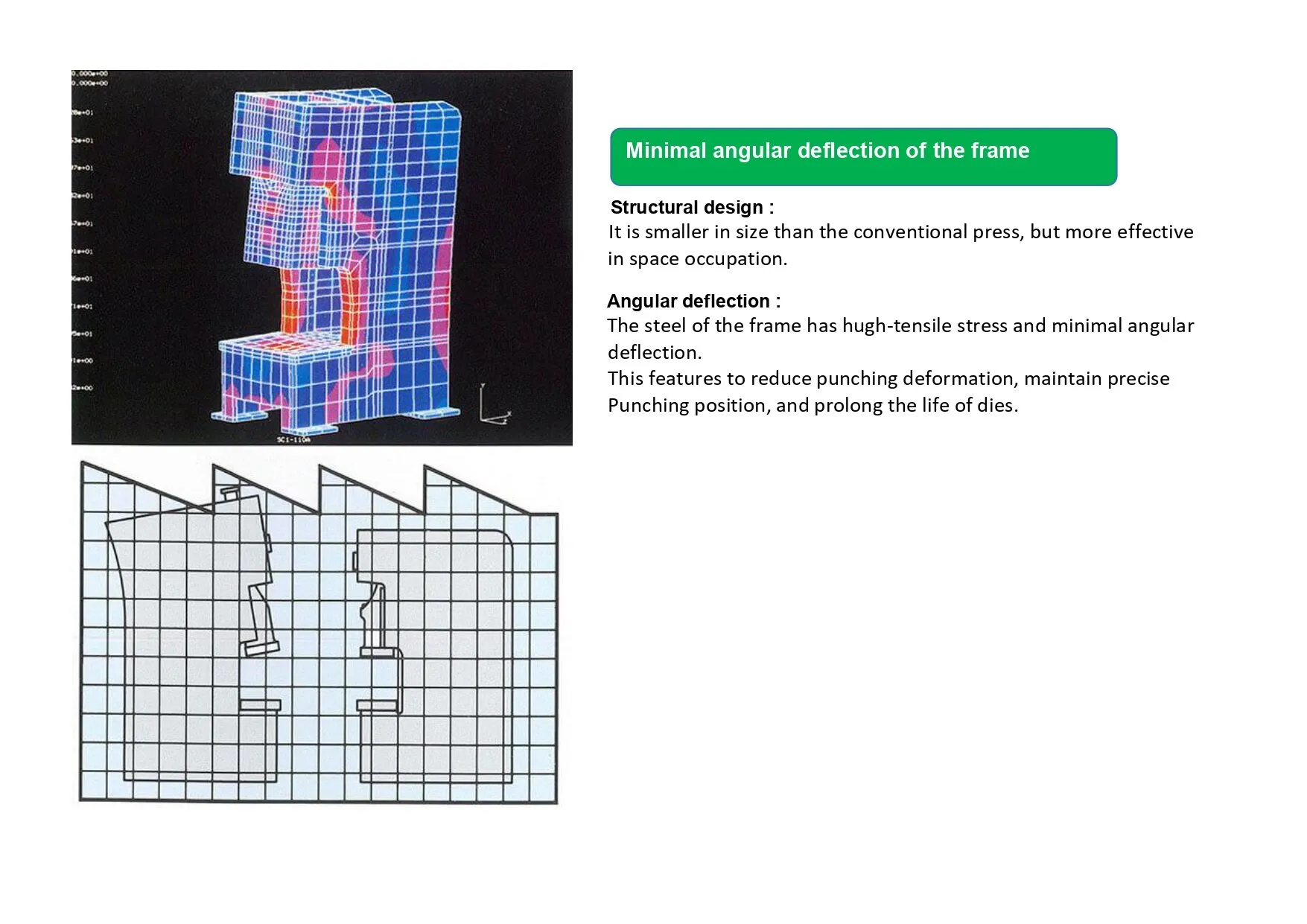

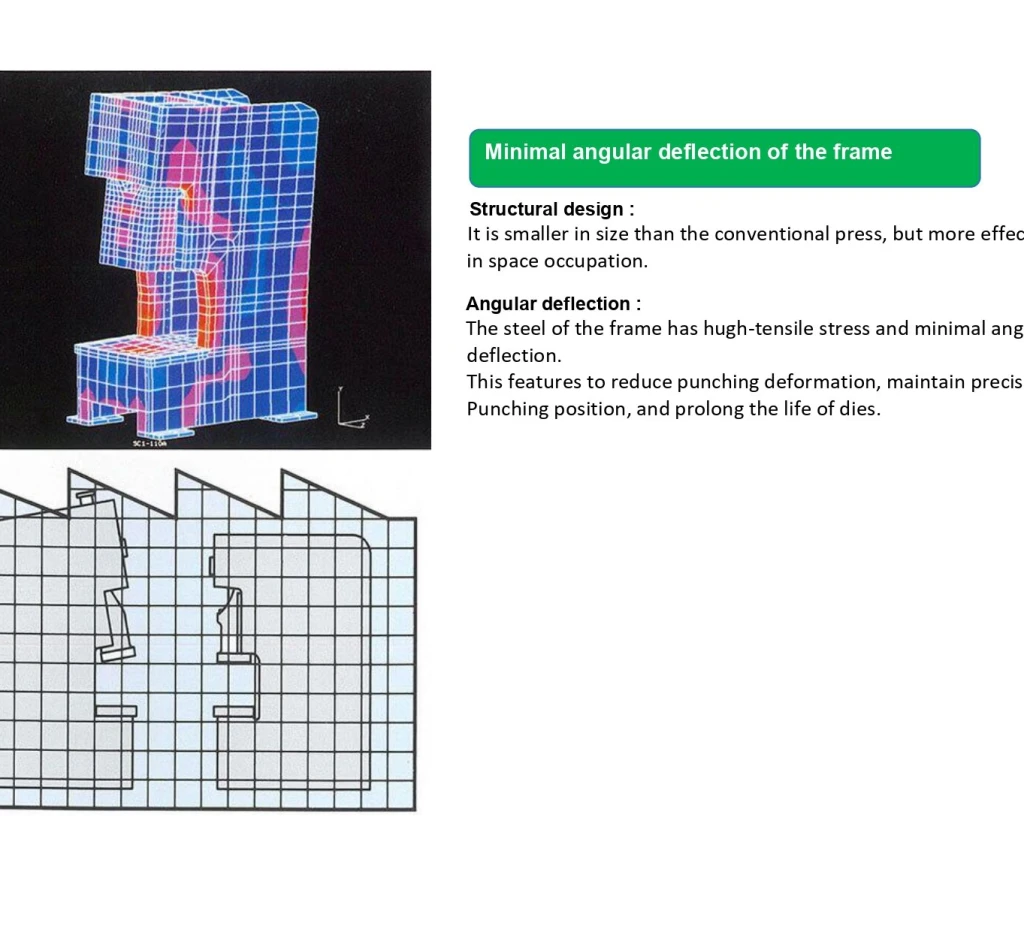

. The minimal angular deflection of the frame.
. High transmission wet clutch / brake.
. Highly reliable over-load protection device.

Video

Specifications

45 - 110 Ton
160 - 260 Ton

Model	Unit	SCP-45	SCP-60	SCP-80	SCP-110
Capacity	Ton	45	60	80	110
Tonnage Rating Point ( Above B.D.C )	mm	3.2	4	5	5
Stoke Length	mm	110	130	150	180
Stroke Per Minute Variable	S.P.M	50-95	45-85	40-75	35-65
Die Height	mm	270	300	330	350
Slide Adjustment	mm	50	60	70	80
Slide Area	mm	440x350	470x380	560x420	650x500
Bolster Area	mm	900x450	970x500	1000x550	1150x680
Main Motor	HPxP	5HP(INV)	5HP(INV)	7.5HP(INV	10HP(NV)
Required Pressure	kg/cm²	5	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice.
- Custom spesifications are available upon request.

Model	Unit	SCP-160	SCP-200	SCP-260
Capacity	Ton	160	200	260
Tonnage Rating Point ( Above B.D.C )	mm	6	6	7
Stoke Lenght	mm	200	220	250
Stroke Per Minute Variable	S.P.M	30-55	25-45	20-40
Die Height	mm	400	450	500
Slide Adjustment	mm	90	100	120
Slide Area	mm	700x550	850x630	950x700
Bolster Area	mm	1300x750	1400x840	1500x840
Main Motor	HPxP	15HP(INV)	20HP(INV)	25HP(INV)
Required Pressure	kg/cm²	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice.
- Custom spesifications are available upon request.
