SC1-SERIES

One Point Press

Link Presses

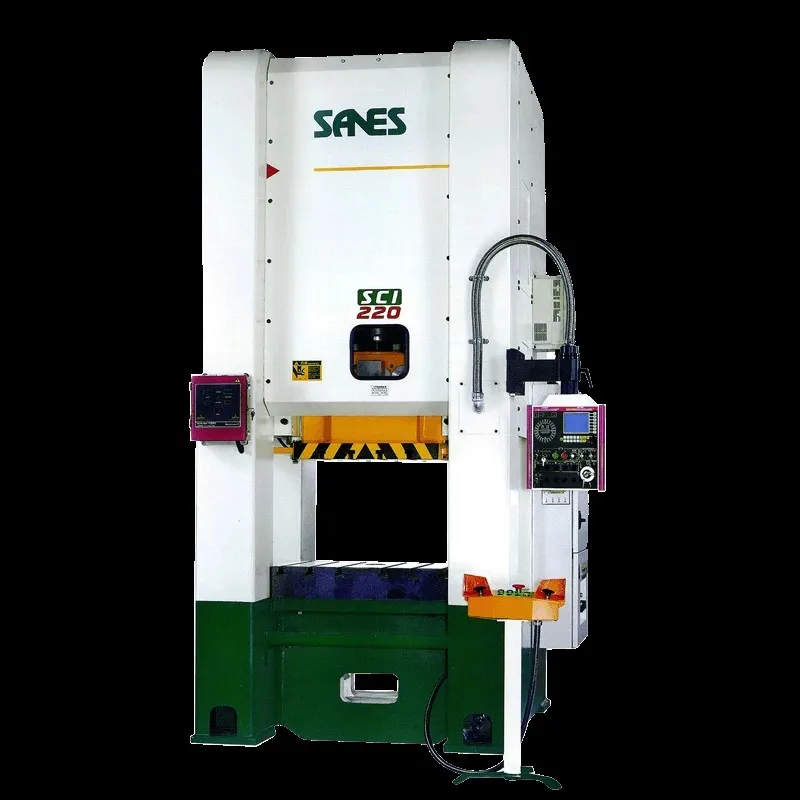

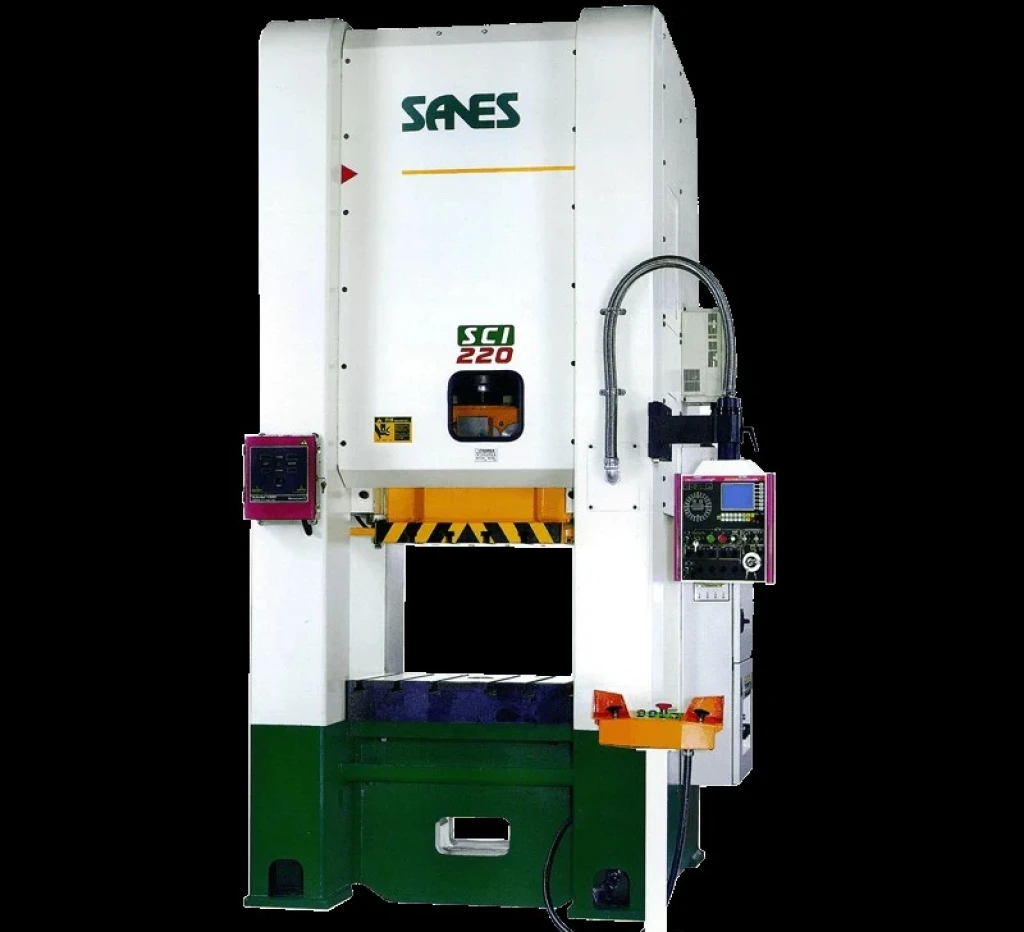

SC1 Series

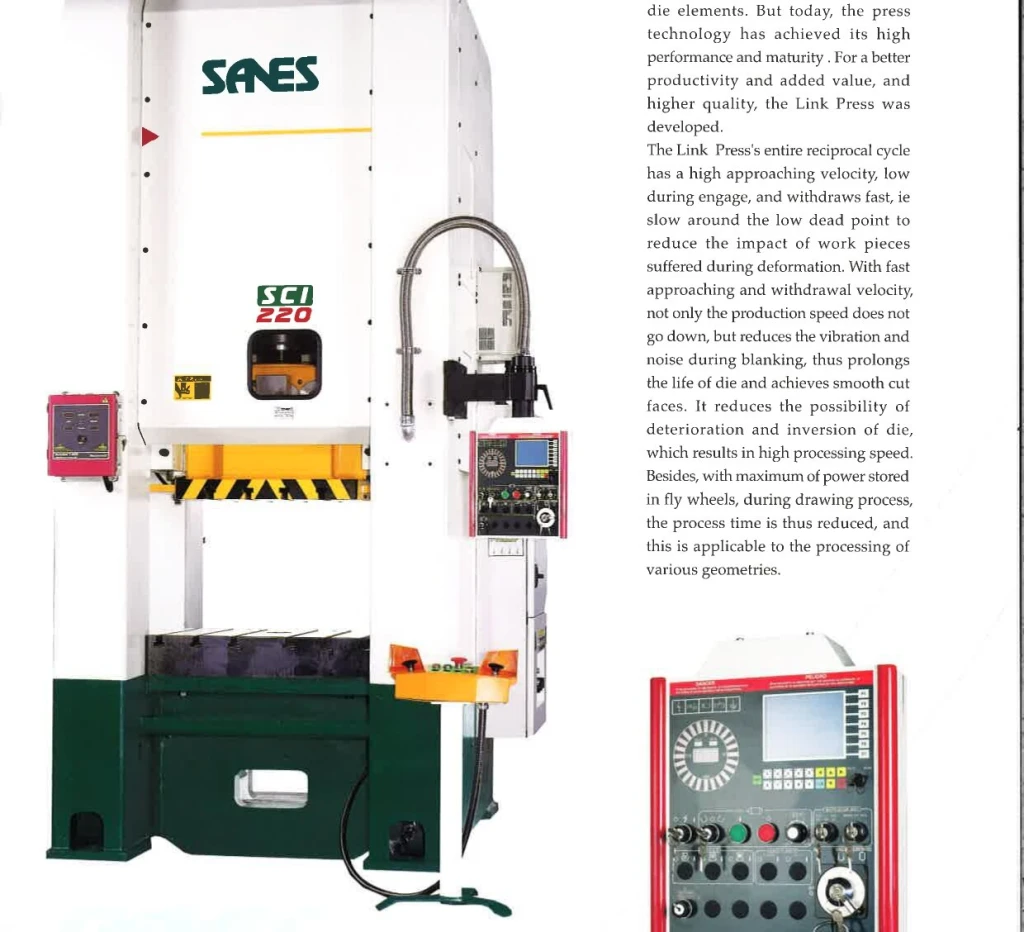

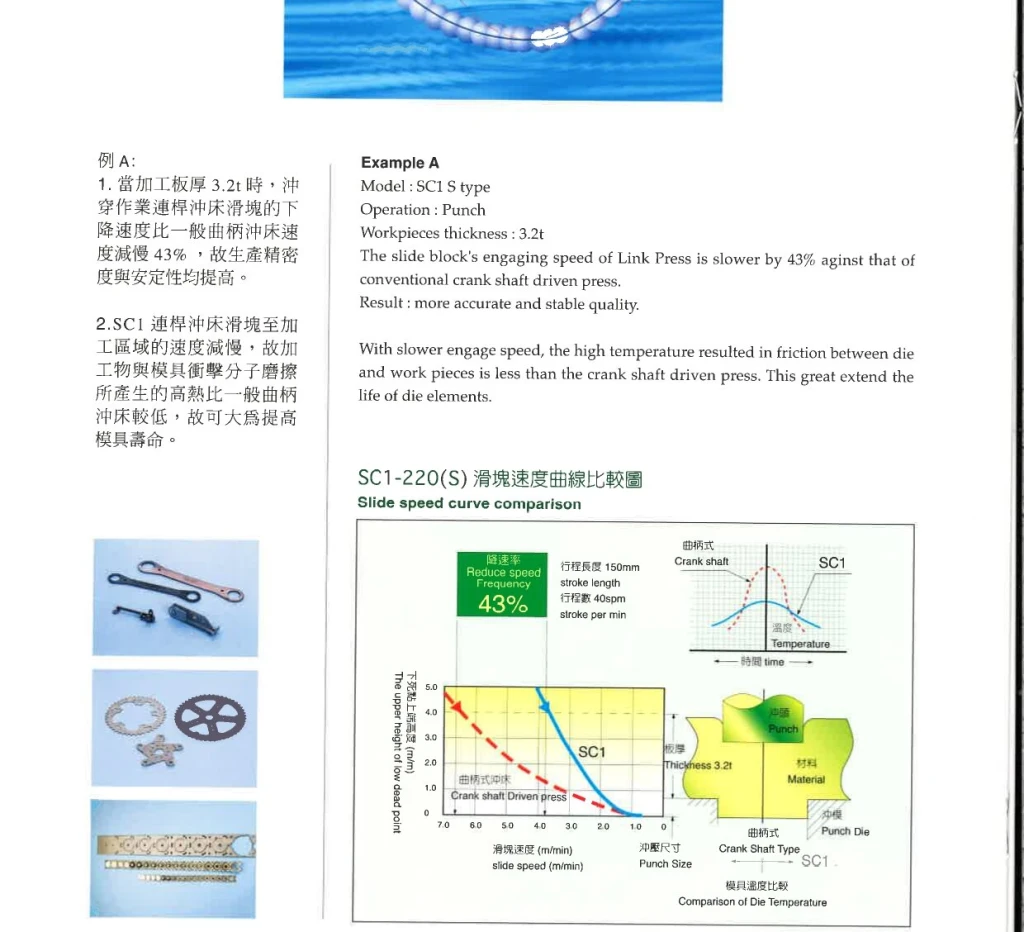

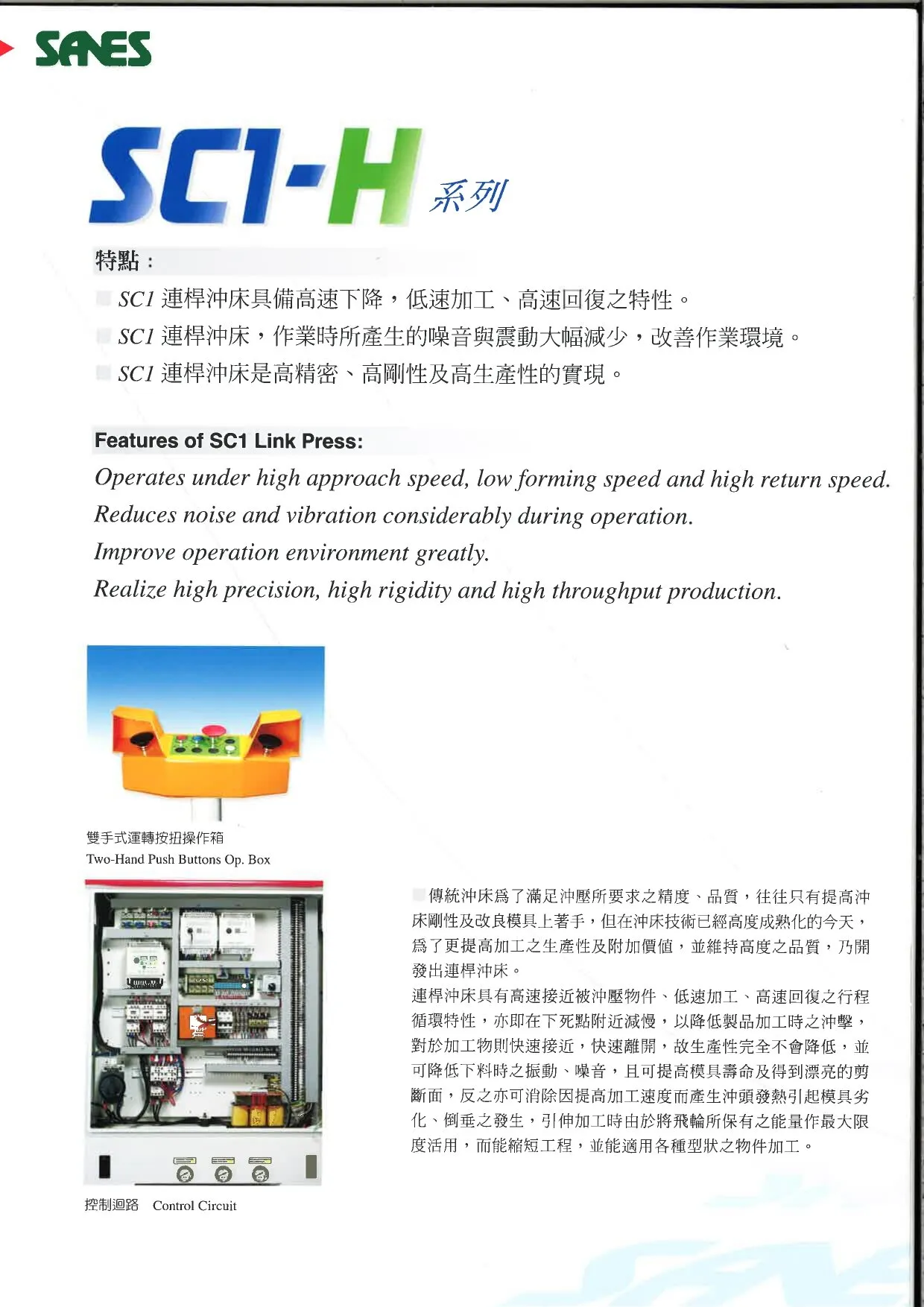

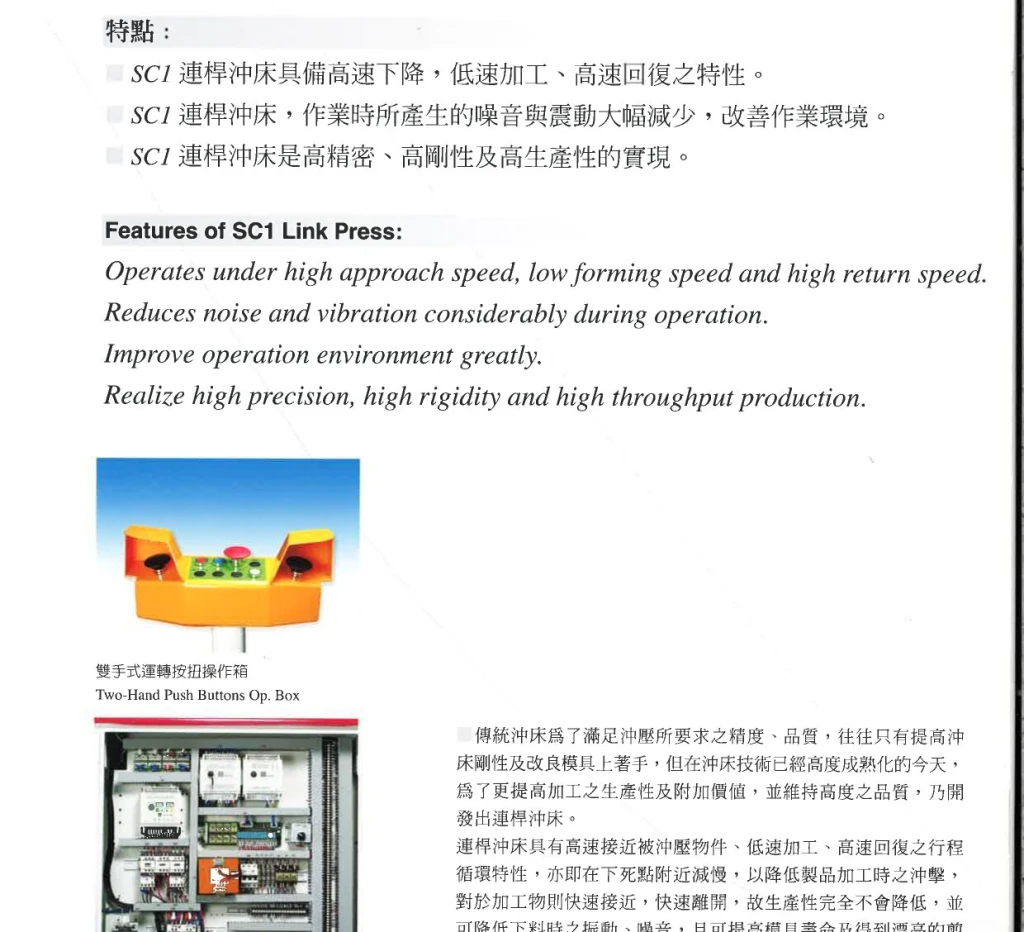

- Operates under high approach speed, low forming speed and high return speed.
- Reduces noise and vibration considerably during operation. Improve operation environment greatly.
- Realize high precision, high rigidity and high throughput production.

CATALOG

Video

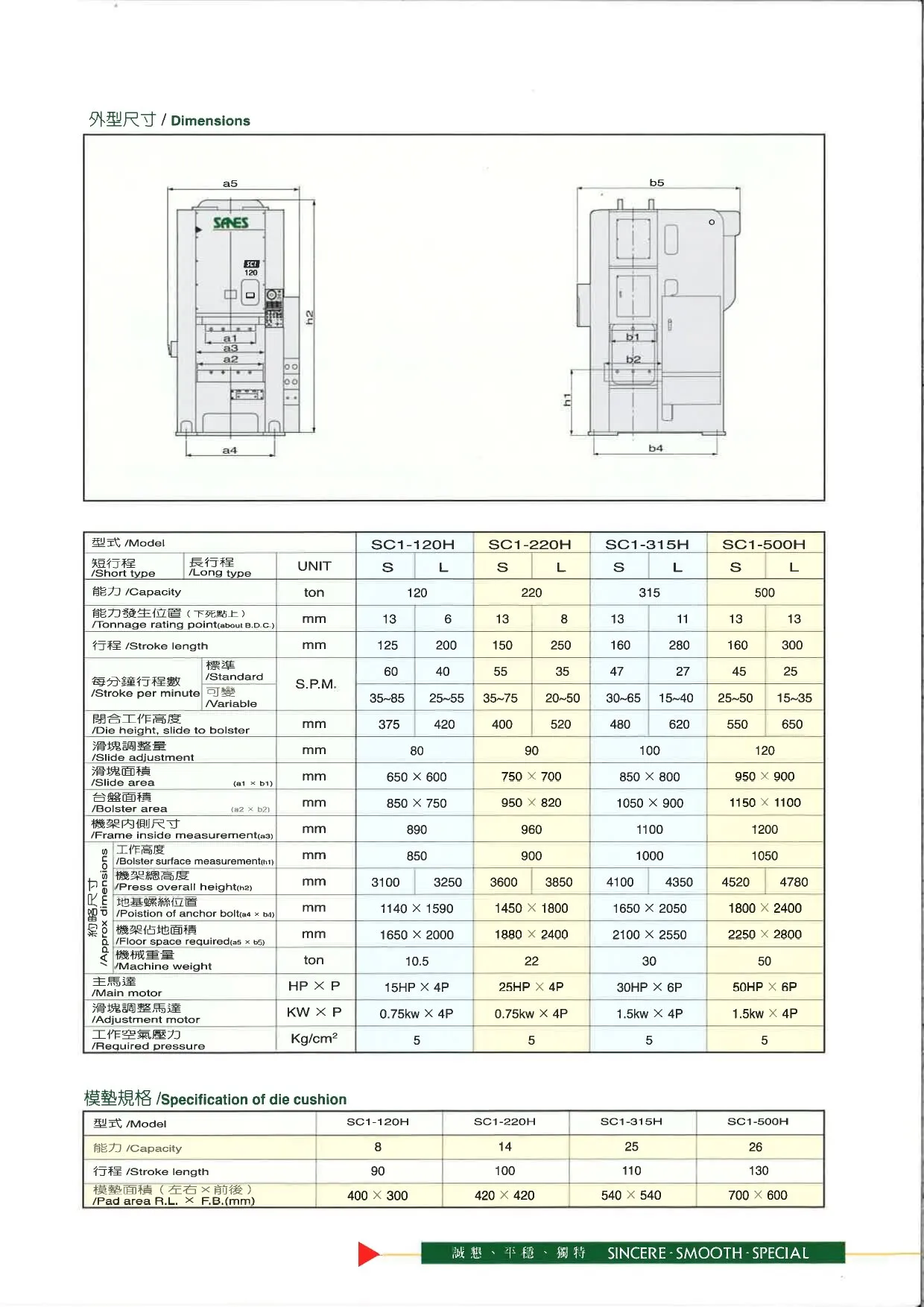

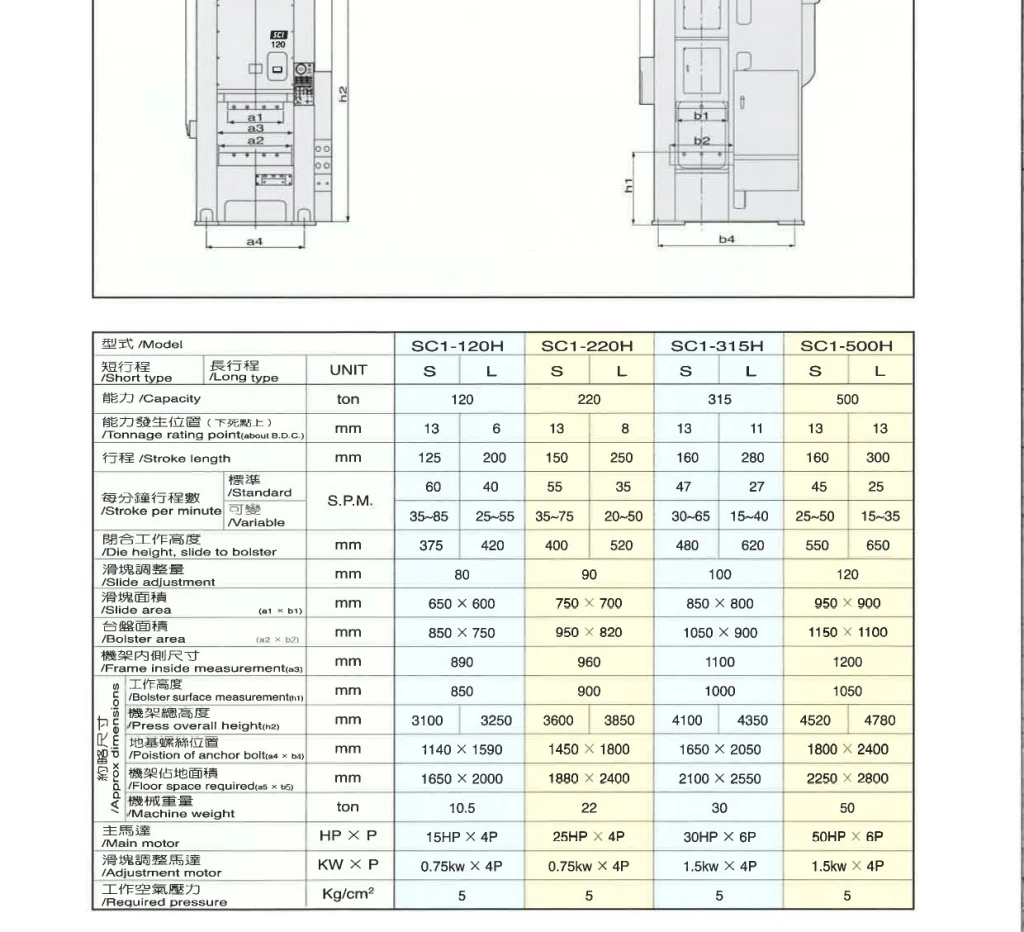

Specifications

120 - 800 Ton

Model		Unit	SC1-120	SC1-220	SC1-315	SC1-500	SC1-800
Capacity		Ton	120	220	315	500	800
Tonnage Rating Point ( Above B.D.C )	Short type	mm	5	5	5	6	9
Tonnage Rating Point ( Above B.D.C )	Long type	mm	8	8	8	9	16
Stoke Lenght	Short type	mm	125	150	160	160	200
Stoke Lenght	Long type	mm	200	250	280	300	400
Stroke Per Minute	Short type	S.P.M	35-85	35-75	30-65	25-50	25-45
Stroke Per Minute	Long type	S.P.M	25-55	20-50	15-40	15-35	Dec-25
Die Height	Short type	mm	375	400	480	550	600
Die Height	Long type	mm	420	520	620	650	800
Slide Adjustment		mm	80	90	100	120	120
Slide Area		mm	650x600	750x700	850x800	950x900	1100x1000
Bolster Area		mm	850x750	950x820	1050x900	1150x1100	1300x1200
Main Motor		HPxP	15HP(INV)	25Hp(INV)	30HP(INV)	50HP(INV)	100HP(INV)
Required Pressure		kg/cm²	5	5	5	5	5
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice.
- Custom spesifications are available upon request.
