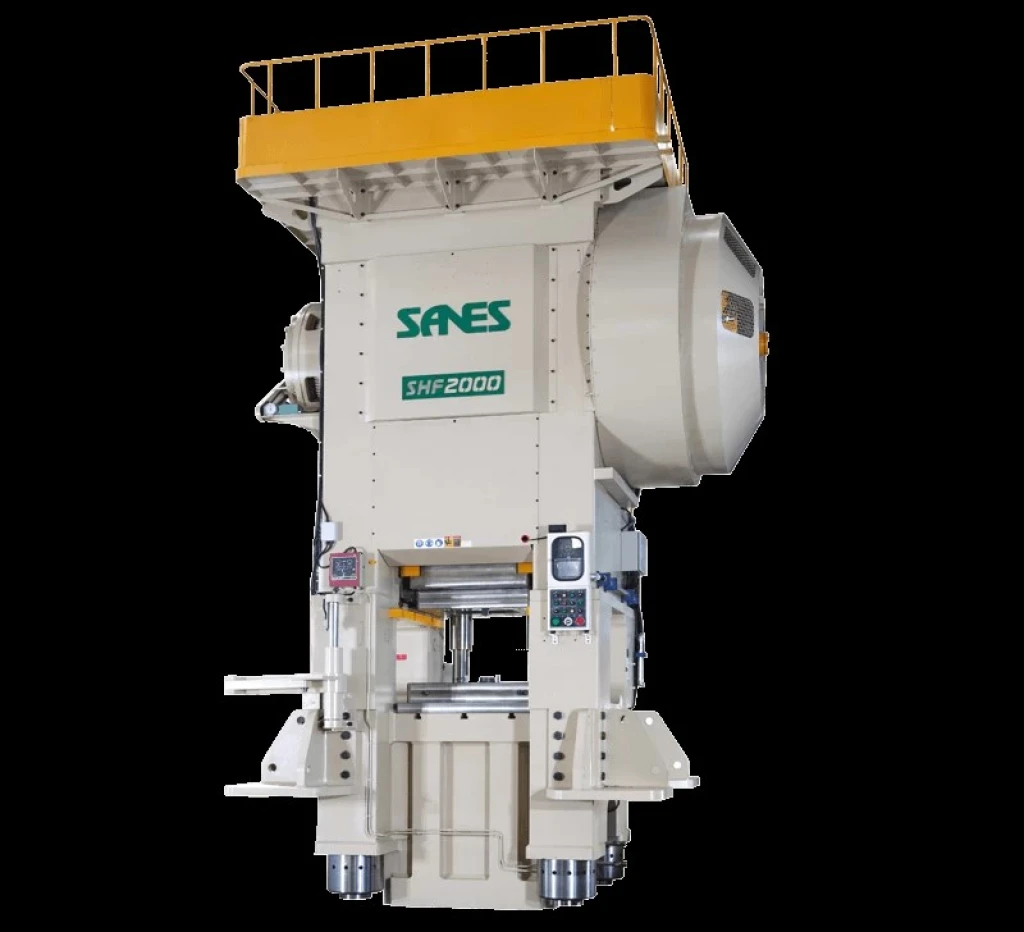

Forging Press SHF SERIES 1 ~blog/2024/8/5/shf_2000

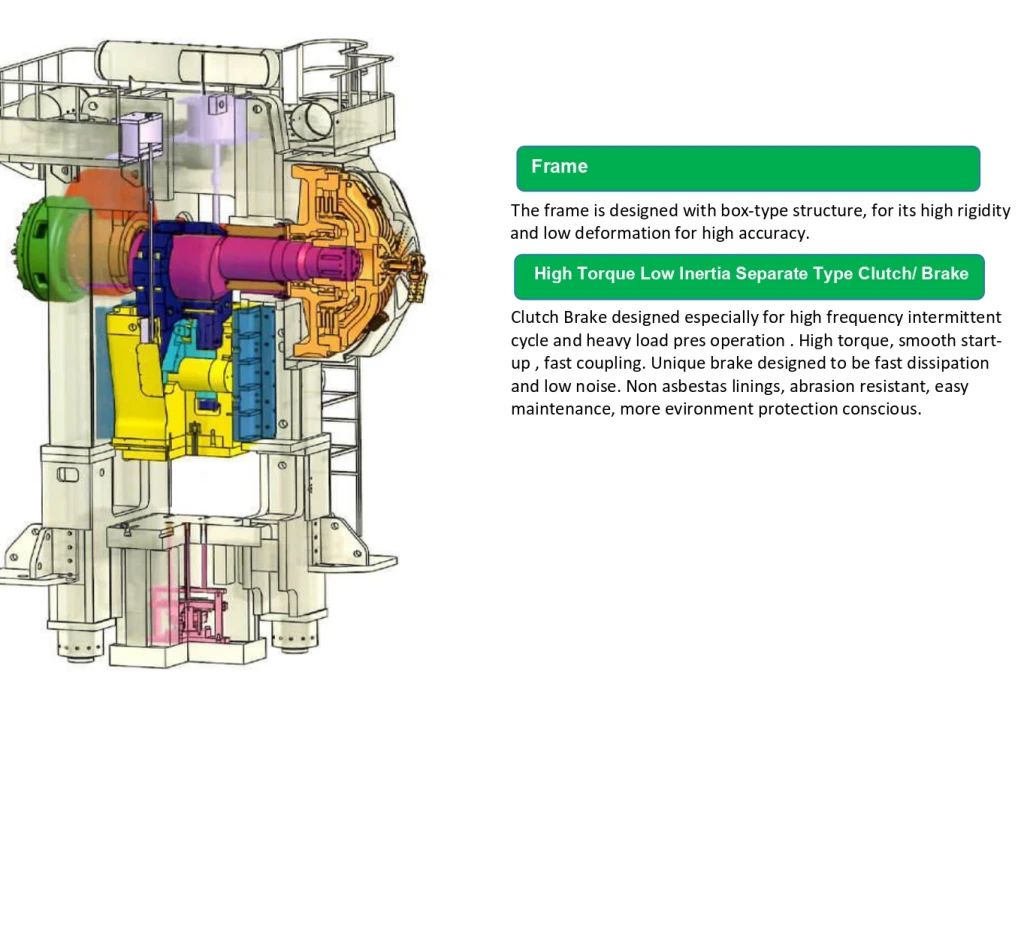

Forging Press SHF SERIES 2 ~blog/2024/8/9/shf_struture_page_0001

SHF SERIES

Forging Press

Totally realize the high accuracy, high stiffness, low noise requirements for warm ~ hot die forging.

- New design moves die forging towards high precision operation. New design moves die forging towards high precision operation.
- Virtually nil gap variation of diagonal X-type guide rails.
- High quality machine accuracy improving machine endurance, providing lasting value.

Application:
* Area automobile * Hand tool Alloy stell * Non-ferrous matel Bicycle, Motorcycle * Cunstruction machinery

CATALOG

Video

Specifications

400 - 1600 Ton
2000 - 4000 Ton

Model	Unit	SHF-400	SHF-600	SHF-1000	SHF-1600
Capacity	Ton	400	600	1000	1600
Tonnage Rating Point ( Above B.D.C )	mm	5	5	5	7
Stoke Lenght	mm	180	200	220	280
Stroke Per Minute	S.P.M	85	80	75	70
Die Height	mm	550	650	750	850
Slide Adjustment	mm	50	10	10	10
Slide Area	mm	520x500	580x660	760x760	1000x1030
Bolster Area	mm	720x720	800x860	1100x1150	1150x1200
Main Motor	HPxP	40HPx4P	60HPx4P	75HPx4P	100HPx4P
Required Air Pressure	kg/cm2	5	5	5	5
Upper K/O Hydraulic Spesification	ton	1.5	1.5	2	3
Upper K/O Hydraulic Spesification	mm	25	25	25	24
Lower K/O Hydraulic Spesification	ton	6	10	15	24
Lower K/O Hydraulic Spesification	mm	60	65	70	80
Hydraulic Motor ( Ko Hydraulic System)	HPxP	7.5HPx4P	10HPx4P	15HPx4P	20HPxP
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice.
- Custom spesifications are available upon request.

Model	Unit	SHF-2000	SHF-2500	SHF-3000	SHF-4000
Capacity	Ton	2000	2500	3000	4000
Tonnage Rating Point ( Above B.D.C )	mm	7	8	8	10
Stoke Lenght	mm	300	320	350	380
Stroke Per Minute	S.P.M	65	60	55	50
Die Height	mm	900	950	1000	1100
Slide Adjustment	mm	10	10	10	10
Slide Area	mm	1100x1100	1150x1150	1200x1350	1250x1500
Bolster Area	mm	1250x1300	1350x1400	1450x1450	1500x1550
Main Motor	HPxP	150HPx4P	175HPx4P	200HPx4P	250HPx4P
Required Air Pressure	kg/cm2	5	5	5	5
Upper K/O Hydraulic Spesification	ton	3	5	2	3
Upper K/O Hydraulic Spesification	mm	25	25	25	25
Lower K/O Hydraulic Spesification	ton	25	30	30	40
Lower K/O Hydraulic Spesification	mm	80	80	80	80
Hydraulic Motor ( Ko Hydraulic System)	HPxP	20HPx4P	30HPx4P	30HPx4P	40HPx4P
- Due to continous research and development, the machine design and spesifications are subject to change without prior notice.
- Custom spesifications are available upon request.
